Circle T Manufacturing LM 116 Single-Spindle Tilting Lock Miter Machine
Machine Available
Stock #93800N

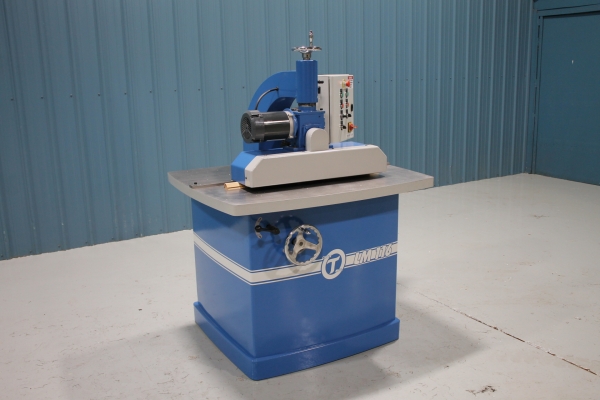

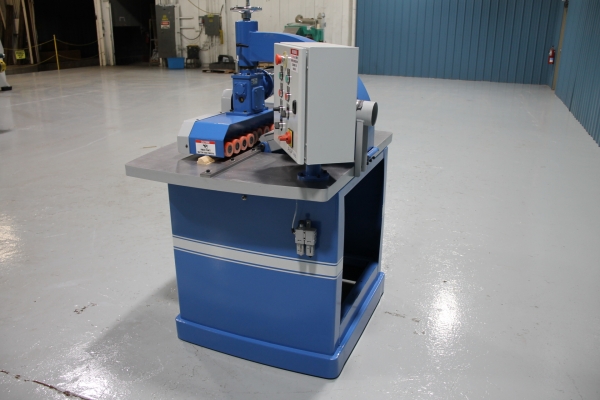

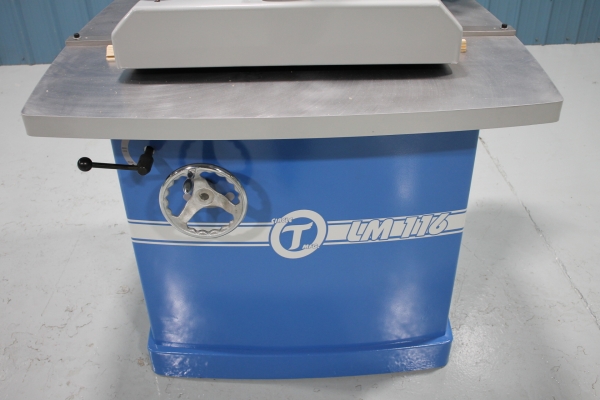

New- Circle T Manufacturing LM 116 Single-Spindle Tilting Lock Miter Machine

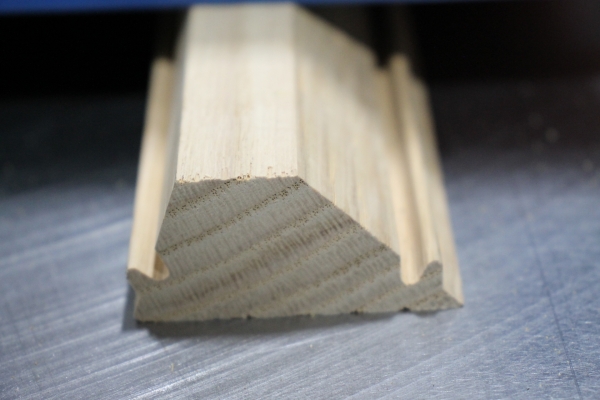

- The Model LM 116 is Specially Designed to Produce a Lock Miter Joint, Commonly Seen in High-End Cabinetry, Posts, Etc.
- Male and Female Profiles are Both Cut Via a Single, Tilting Spindle

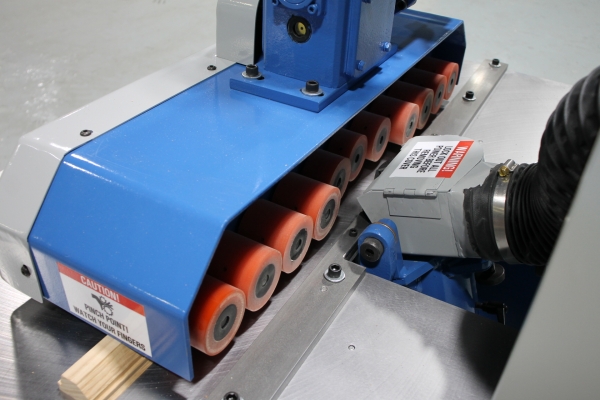

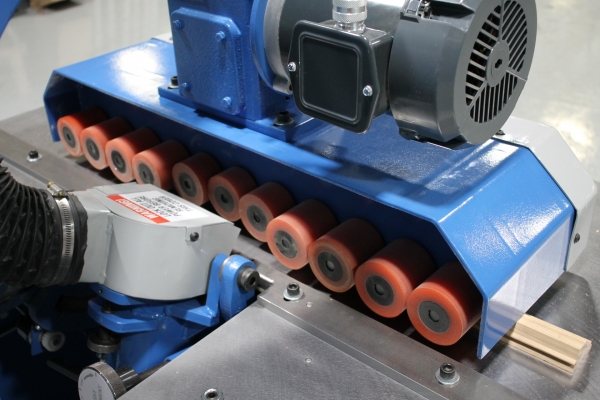

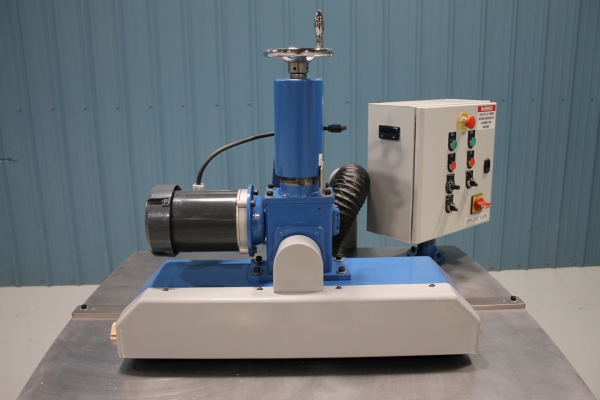

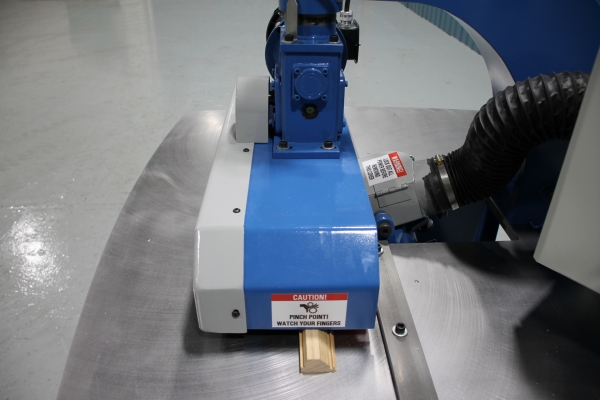

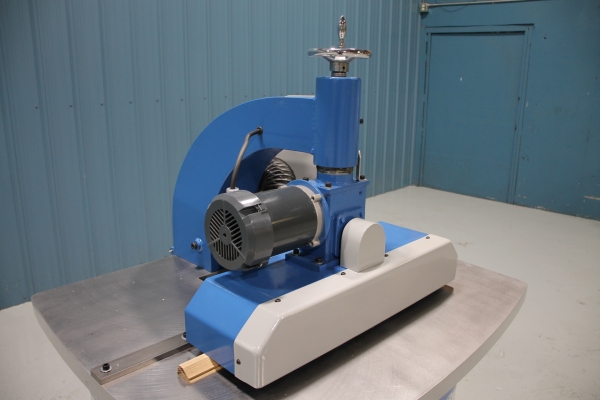

- Newly Designed Eleven Roll Power Feed!

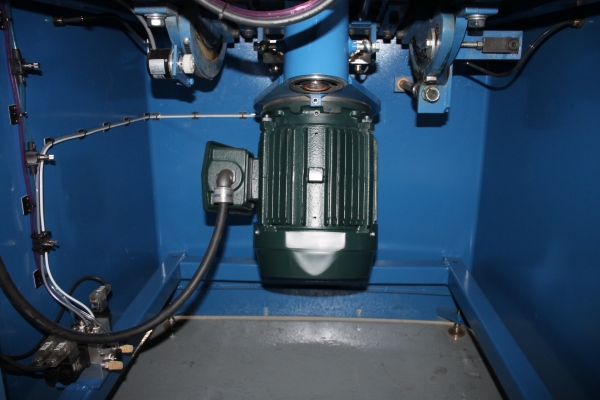

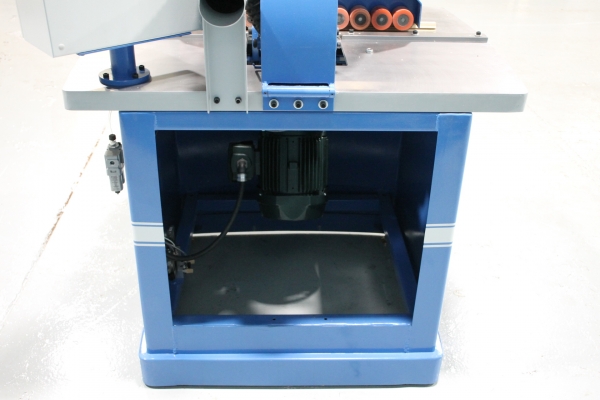

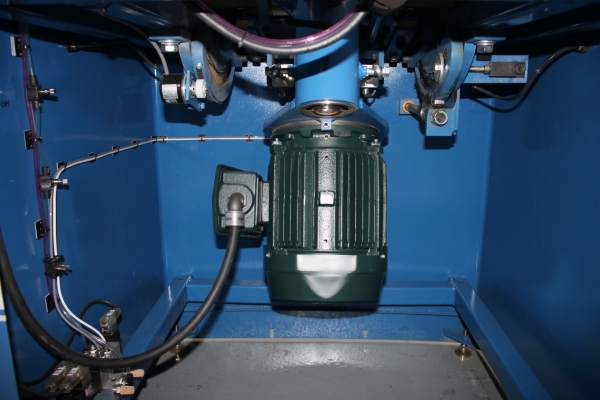

- Spindle Motor: 5 HP, 230/460v, 3ph
- Spindle Diameter: 1-1/4"
- Spindle Speed: 7,600 RPM

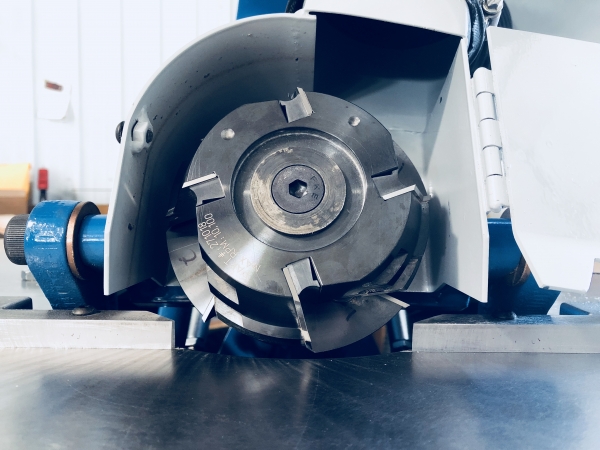

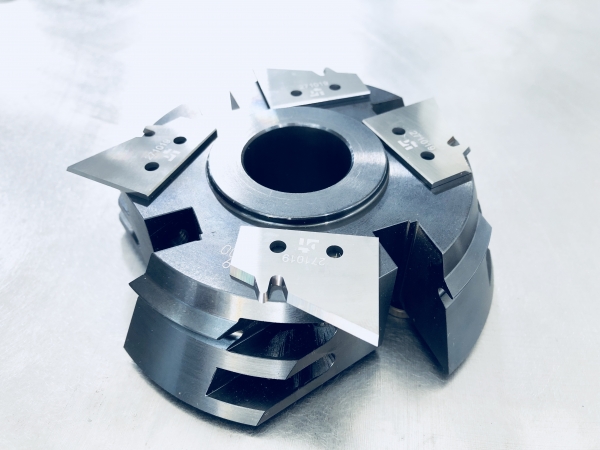

- Machine does come with a set of cutterheads
- Maximum Material Thickness: 1"
- Minimum Material Thickness: 1/2"
- Minimum Material Width: 1-1/4"
- Minimum Material Length: 12"
- Capable of Machining Angles from 90 - 30 Degrees
- Feed Motor: 0.5 HP
- Variable Speed Feed from 20 - 60 FPM
- Table Size: 40" x 47"

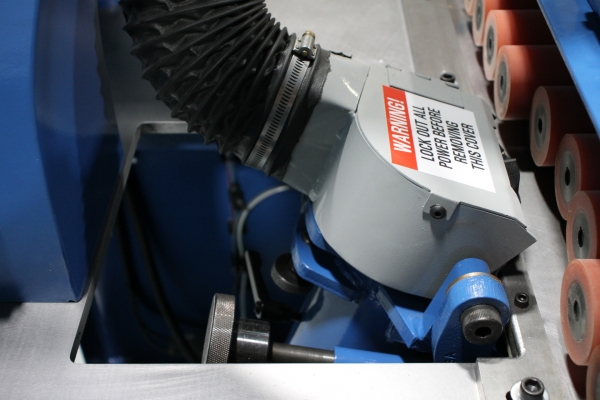

- Dust Collection Requirements: 670 CFM, 4" Outlet
