Castle Model TSM-22 Pocket Boring Machine
Machine Available
Stock #05150N

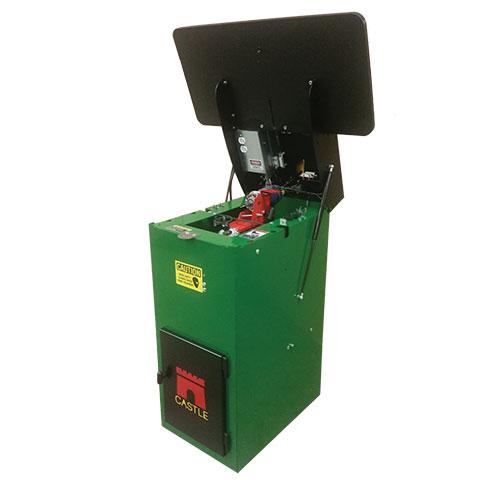

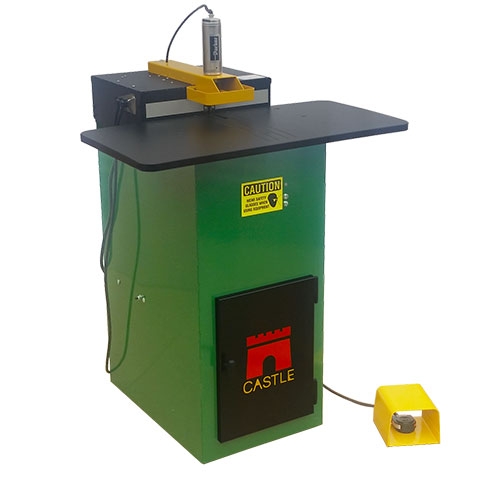

New- Castle Model TSM-22 Pocket Boring Machine
- Cuts the Castle low-angle, 6 degree pocket, for strong, stable, tight, and superior joints
- Designed for professional, joinery with maximum throughput of parts and components
- Low-angle, 6 degree pockets minimize the need for clamping during assembly
- Cuts pocket and pilot hole in a single cycle, increasing throughput and decreasing material damage and waste
- Footswitch with automated operation that’s simple and easy to use
- The TSM-22 clamps the stock, routs a pocket, and drills a pilot hole - all with a tap of the foot pedal - in a cycle time of just 1.5 to 2 seconds
- Use the TSM-22 with composites, panel, hard or soft wood
- Router: Bosch 2.25hp #1617EVS
- Drill: Bosch Colt 1.0hp #PR20EVS
- Router bit: Premium 3/8” Solid Carbide, Rough Mill
- Drill bit: Premium 9/64” Brad and Spur TiN-Coated Bit
- Power req: 110V, 15 amps
- Air req: 85 psi
- Bosch 1617 Router 2.25hp for pocket cutting
- Bosch Colt Router 1hp for drilling pilot hole
- Basic footprint: 31.5″ depth x 30″ width x 48" high
- Working height: 36.5″
- 4” integrated dust port
- Manufactured in USA
