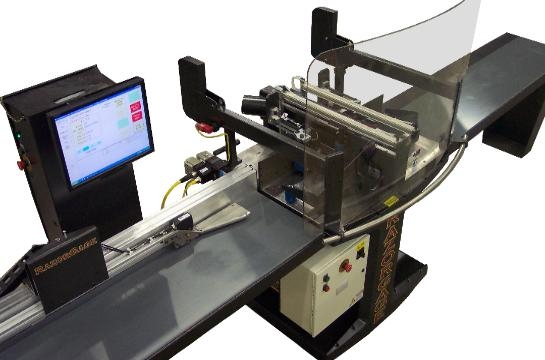

Razorgage Model RazorOptimal Saw System

• Razorgage Model RazorOptimal Saw System
• RazorOptimal Saw System
  Here’s What you get with your RazorOptimal Saw System
• Industrial tower electrical chassis for dust intrusion control.
• RJ45 Networking port
• USB ports
• Windows 8.1 Professional operating system
• 21-inch color touch screen operator interface
• Powerful RazorOptimal software to organize, opti-mize, and track your downloaded cut list data.
• Cyclone precision up cut saw
• Linear bearing precision
• 500mm blade included. 600mm optional
• Intelligent left and right front clamping
• Top clamping uses linear bearing system
• Scans material length and crayon marks on boards >1” wide.
  Precision Positioning
• Double bearing block carriage for the ultimate in carriage stability on a linear rail, just as a high-end CNC Machine should be.
• Planetary gear reduction system — Near ZERO backlash: Major contributor to RazorGage superior accuracy and repeatability.
• Three points of contact: Three times as strong.
  World-Class Software
• Flexible sorting of parts. Operator selects material to process from list.
• Optimizing - after scanning your defect location marks and board length, computer will select combination of parts that best fit defect-free available material, increasing yield
• Cut parts are tracked should you wish to add one back into list.
• Fully compatible with common design soft-ware package .csv cut list files
  Available Options
  Inkjet Printer
• Perfectly complements your RazorOptimal software
• Print any data on your parts that you have downloaded
• Helps sort parts as they are made
• Helps expedite assembly, for example, with part name, cabinet number and length
  Out Feed Table
• Out feed Tables include one leg per table section. 6, 8 and 10-foot sections combine for desired length.
• Overall table width is 21 inches. 16-inch usable flat PVC table surface -- typically used for wood materials.
  RazArray Sorting Assist
• Works in conjunction with RazorOptimal Software
• LED’s Identify which bin next part goes into
• Example: Can key off Cabinet Number
• Typically ordered as multiples of 8-columns x 8-rows
• Starting immediately any of your saw operators can improve cut part accuracy, reduce mistakes and get more yield from your materials.
