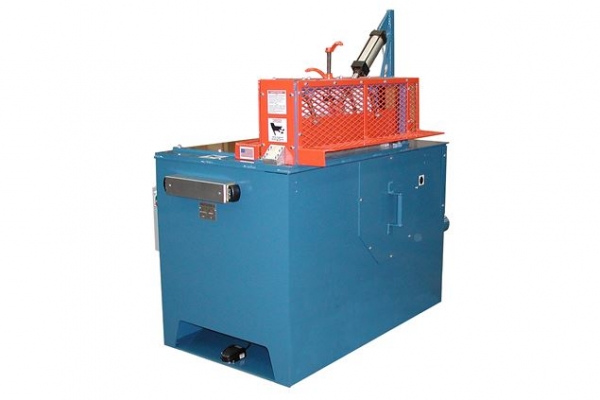

Crosscut Solutions Model CS18P2x24 Cut-Off Saw

Machine Available
Stock #81550N
New
   CALL FOR PRICE

  • Crosscut Solutions Model CS18P2x24 Cut-Off Saw
  • Cut capacity of 2” thick by 24” wide
  • This also has a cutting envelope of 1” x 26”
  • An overhead pneumatic clamp is controlled by a solenoid valve that is activated by an electric foot switch, once clamped, the saw is activate by a double palm switch with a safety interlock, the saw is cycled by a pneumatic cylinder with a hydra-check cylinder to give positive control of the saw movement.
  • 7.5 HP TEFC (230/460/60/3) motor
  • starter enclosure with a contactor
  • Fuses and transformer to produce 110 volt for the control voltage
  • Saw blade is 18” dia. with 1” bore, saw blade not included
  • 2 – 4” dust collection outlets with a total of 900 CFM at 5000 fpm velocity at 4” WG
  • The saw floor space is 32” wide by 55” deep
  • Available in right or left hand (please state hand and voltage of the saw.)
