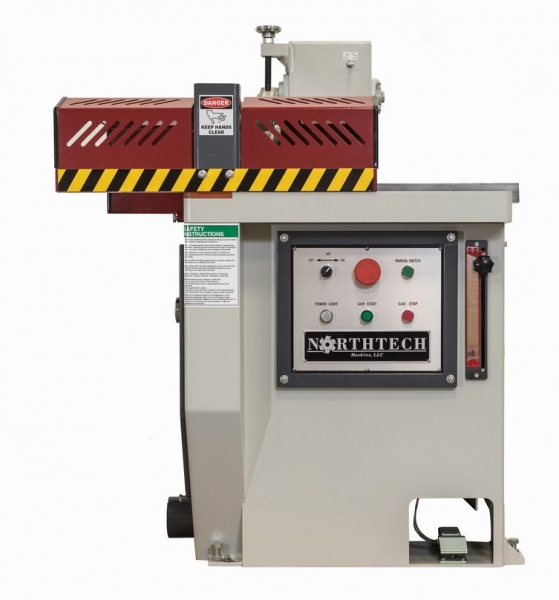

Northtech Model NT-UCS24 Up Cut Saw
Machine Available
Stock #812000N
New- Northtech Model NT-UCS24 Up Cut Saw
- Main Motor Hp. = 15 Hp.
- Voltage/ Freq. = 230 Volt 60Hz Phase = 3 Phase
- Amp Requirement = 32 Amps
- Electronics = CE Approved Components
- Dual Voltage = 230/460 Volt
- Control Voltage = 24 Volt Magnetic Controls
- Assisted Start = Y Delta
- Cut Envelope = 2" x 21", 4" x 19", 6" x 15", 8" x 8"
- Max. Width = 1'' x 22''
- Max. Thickness = 8'
- Arbor Rpm = 2100
- Blade Size = 24'' Tungeston Carbide Tipped
- No. of Teeth = 100 Tooth
- Tooth Spacing = 5/8 In.
- Blade Kerf = .156 In.
- Dust Collection = (2) 4'' @ 450 CFM
- Dust Port Out = 4'' Top 4'' Bottom
- Arbor Diameter = 1'' Arbor
- Cycles/Minute = 26 Cuts Per Minute
- Hold Down Style = T Clamp
- Recommended CFM = 480 nl/min
- Emergency Stop = Push Button
- Guarding = Full Gaurd with Clear View Window
- Operation Style = Pneumatic Foot Pedal
- Fence Type = Adjustable Fence
- Fence Dims. = 2" x 25'' Machined Steel
- Adjust. Stroke = 7-3/4'' Adj. on Arbor Stroke
- Frame Const. = 1/4'' Steel Construction
- Worktable Dims. = 28-3/4'' x 45''
- Table Const. = Machined Steel
- Decible Rating = 68 dB
- Net Weight = 1285 Lbs.
- Gross Weight = 1455 Lbs.
- Machine Dims. = 31-3/4'' x 45'' x 56''
- Packaging Dims = 36'' x 51'' x 61''
- OPTIONAL: For additional charge Dual Palm
- OPTIONAL: For additional charge Safety Interlock Switch
- Available in Left & Right Hand Configuration
