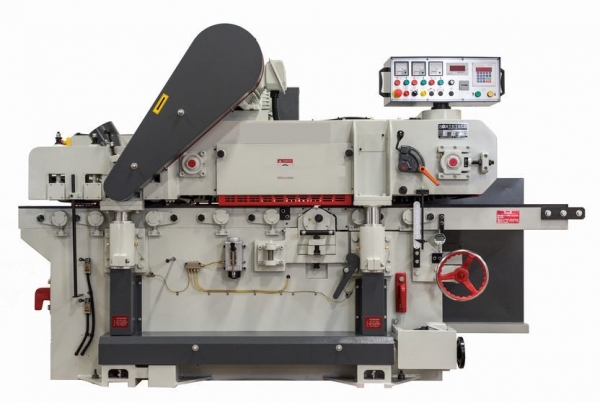

Northtech Model NT 820HC Auto Double Surface Planer

• Northtech Model NT 820HC Auto Double Surface Planer
• CUTTERHEADS
• 50HP Top, 50HP Bottom
• Dual (8) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts
• 5000RPM solid steel cutterheads with Class 7 NSK bearings
• PRODUCT DIMENSIONS
• Working width 820mm (32”)
• 16” min working length
• Thickness range 10mm - 160mm (3/8” - 6-1/4”)
• FEED SYSTEM
• 10HP + 15HP inverter feed motor
• Elevation motor: 2HP
• Carpet feeding spike system with 1900 spikes
• Feed speed 8~25 M/min (25-80FPM)
• FEATURES
• Digital control panel with 3 oversized inverter feed control amp meters
• Chrome bed plate
• Patented 4 column lifting system
• Carpet feeding spike system
• Cardan shaft drive system
• 80 FPM maximum feed speed
• Amperage requirement at 160 @ 460V; 320 @ 230V
• (3) 6” dust ports requiring 981 CFM @ each point of extraction
• UL/CE Certified electrical components
• Lubricating system 2L
• Includes operator’s manual and parts book
• Machine dimensions: 121” L x 77” W x 69” H
• Packing dimensions: 124”L x 81”W x 77”H
• Machine gross / net weight: 15,433 lbs. / 16,535 lbs
• One year parts warranty
• All machines are tested stateside prior to shipment providing trouble-free start up.
