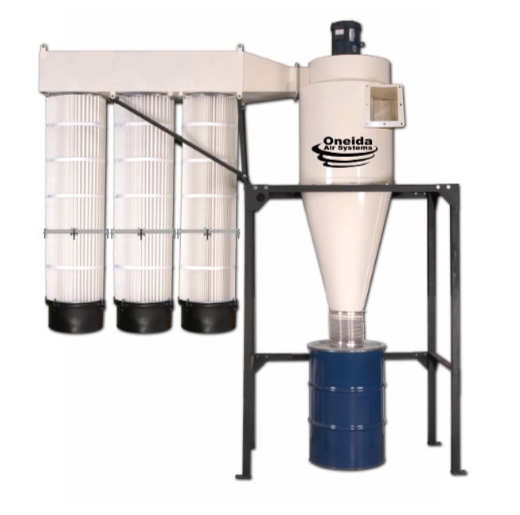

Oneida 10hp Direct Drive Dust Collector

Machine Available
Stock #240100N
New
   CALL FOR PRICE

  • Oneida Air Systems, Inc. was founded in 1993 to bring cost effective, state-of-the-art dust collection systems and material handling ductwork to woodworking shops. OAS designs and manufactures industrial grade dust collection systems that create a prac- tical, safe and healthy work place environment.

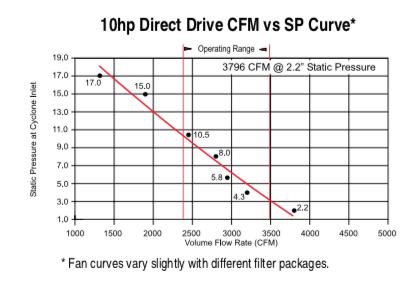

    System Performance
  • 3800 cfm @ 2.3” SP

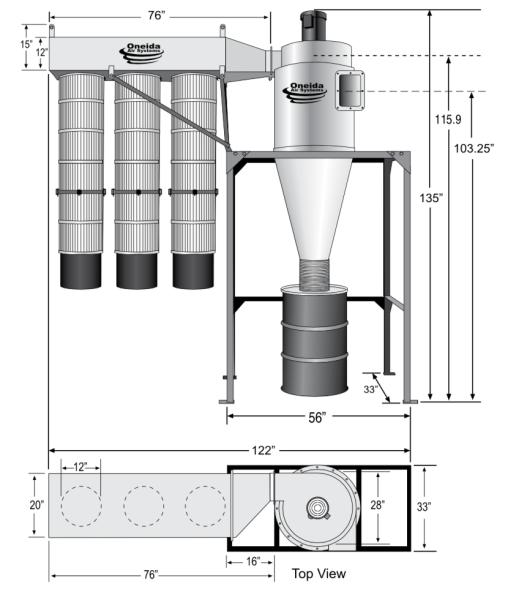

    System Dimensions
  • Height w/ 55 Gallon Drum: 135”
  • Footprint w/ Ext. Cartridge: 33” x 122”
  • Inlet Rectangle to 12” dia. Full Welded 8” w/ Neutral Vane
  • Outlet: Rectangle (Square to Round Adapter Available)
  • Powder Coated Paint Finish Over Heavy Gauge Steel
  • Weather-Proof Cyclone and Fan Blower
  • Fully Seam-Welded Construction
    Integral Fan Blower
  • U.S. Made Baldor
  • 10 Horsepower Three Phase
  • TEFC Motor, 1.15 Service Factor
  • Insulation Class F
  • Voltage: 208-230 / 460V
  • Amperage: 26.2 - 23.8 / 11.9
  • Welded carbon steel / Backward Inclined / Dynamic, Two-Plane Balanced to ISO 6.3 Specifications. The Same as Aircraft Turbine Rotors.
    Filter Media
  • 465 Sq. Ft. (3) High Efficiency Axtar Spun-Bonded Media
  • Accredited, Independent Lab Tested
  • Teflon-Like Coating to Facilitate Dust Cake Release
  • Filter Media Captures 99.9% of Test Material from 0.2 - 2 Microns @ 11 FPM
    Sound Level
  • With Standard Silencer & Filter: 85 - 87 dBA @ 10’
    Dust Bin
  • 55 Gallon Steel Drum. Other Sizes & Types Available.
    Included
  • 2 Yr. Warranty
  • Heavy Duty One Angle Iron Stand
  • Filter Efficiency Kit
  • (3) Internal Silencers - Pat. Pend.
  • Magnetic Starter
  • Square to Round Inlet Adapter to 12” Dia.
    Options not included but can be added
  • Hoppers
  • Bag Gripper, Plastic Bag Hold-Down System
  • Bin Level Indicator
  • Airlock
  • GE HEPA (H-12) Filter Media
