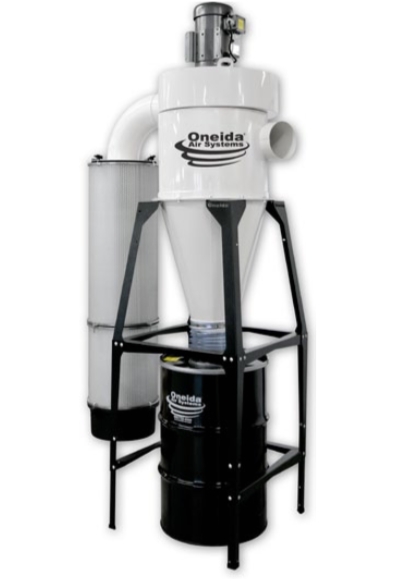

Oneida 5hp High Vacuum Dust Collector
Machine Available
Stock #240200N
New- Oneida Air Systems, Inc. was founded in 1993 to bring cost effective, state-of-the-art dust collection systems and material handling ductwork to woodworking shops. OAS designs and manufactures industrial grade dust collection systems that create a prac- tical, safe and healthy work place environment.
System Performance -

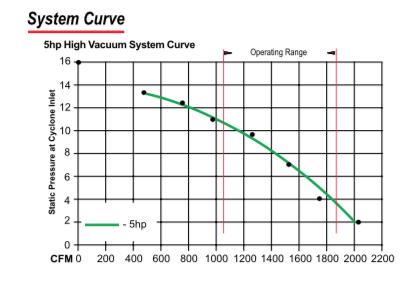

2150 CFM @ 2” SP w/ Filter

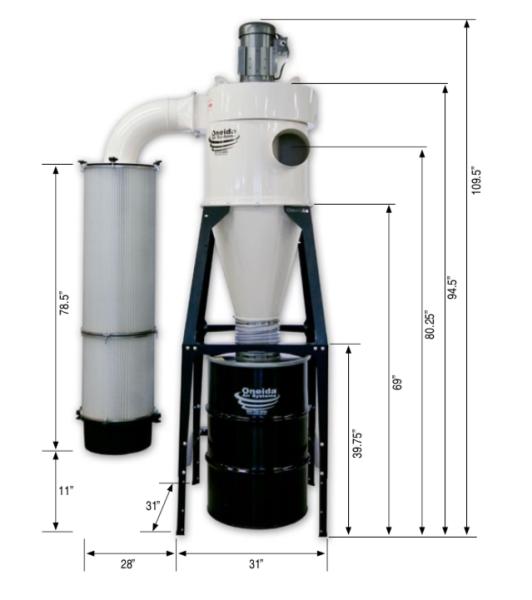

System Dimensions - Height w/ 55 Gallon Drum: 109.5”
- Footprint w/ Ext. Cartridge: 31” x 59”
- Inlet Diameter: Full Welded 8” w/ Neutral Vane
- Outlet: Rectangle (Square to Round Adapter Available)
- Powder Coated Paint Finish Over Heavy Gauge Steel
- Weather-Proof Cyclone and Fan Blower
-
Fully Seam-Welded Construction
Integral Fan Blower - U.S. Made Baldor
- 5hp Single or Three Phase
- TEFC Motor
- Insulation Class F
- Voltage: 1 Phase, 230V / 3 Phase. 208-230/460V
- Amperage: 1 Phase. 19.5A / 3 Phase, 13.2-12/6A
- Cast Aluminum Alloy 356T-51 / Backward Inclined
-
Non-Sparking, Non-Ferrous as Required by NFPA Fire Code / Dynamic, Two-Plane Balanced to ISO 6.3 Specifications. The Same as Aircraft Turbine Rotors.
Filter Media - 155 Sq. Ft. High Efficiency Axtar Spun-Bonded Media
- Teflon-Like Coating to Facilitate Dust Cake Release
-
Filter Media Captures 99.9% of Test Material from 0.2 - 2 Microns @ 11 FPM
Sound Level -
With Standard Silencer & Filter: 75 - 81 dBA @ 10’
Dust Bin -
55 Gallon Steel Drum. Other Sizes & Types Available.
Included - Filter Efficiency Gauge
- Heavy Duty Angle Iron Stand

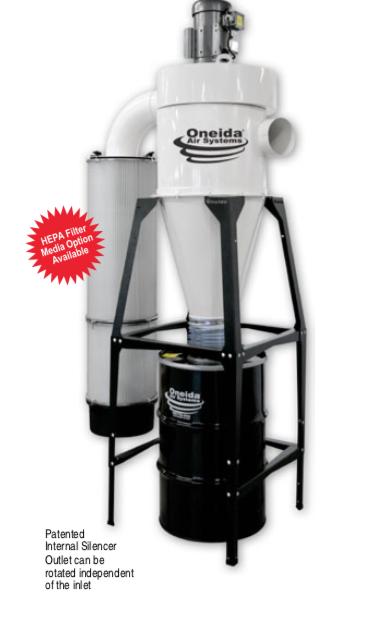

- Patented Internal Silencer
- Ductwork Design Service
-
Magnetic Starter - w/ On-Off Switch Preset for Add-On Remote with
Amperage Overload Protector (1 Phase) Filter Grounding Wire
Options not included but can be added - Bag Gripper, Plastic Bag Hold-Down System
- Hoppers / Multiple Drums
- Bin Level Indicator
- Airlock
- Remote Starter - Radio Frequency - 1 Phase only
- GE HEPA (H-12) Filter Media)
