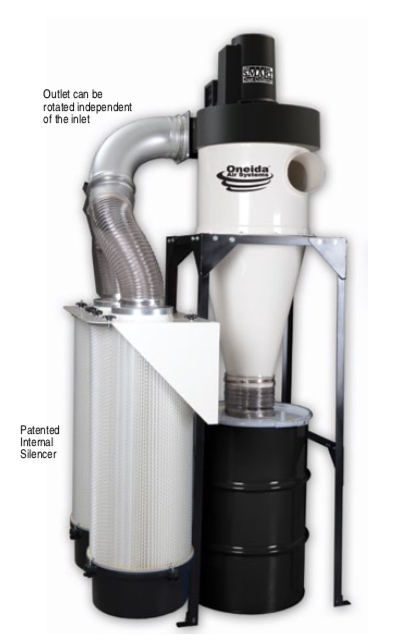

Oneida 5HP High Vacuum Cyclone Dust Collector w/ SMART Boost
Machine Available
Stock #240300N
New- Oneida Air Systems, Inc. was founded in 1993 to bring cost effective, state-of-the-art dust collection systems and material handling ductwork to woodworking shops. OAS designs and manufactures industrial grade dust collection systems that create a prac- tical, safe and healthy work place environment.

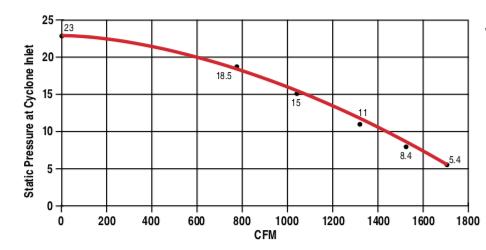

System Performance -
1789 Max. CFM

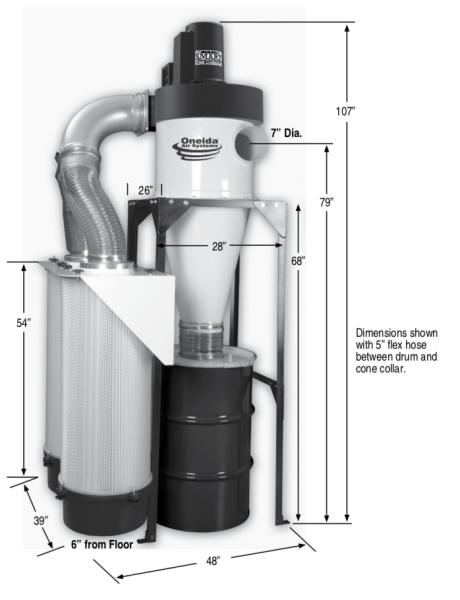

System Dimensions - Height w/ 55 Gallon Drum: 107”
- Footprint w/ Ext. Cartridge: 40” x 48”
- Inlet Diameter: Welded 7” w/ Neutral Vane
- Powder Coated Paint Finish Over Heavy Gauge Steel
-
Seam-Welded Cyclone
Integral Fan Blower - U.S. Made Baldor
- 5hp Voltage: 208 - 230V - Three Phase
- Amperage: 15A
-
Cast Aluminum Alloy 356-51 / Backward Inclined / Non-Sparking, Non-Ferrous as Required by NFPA Fire Code / Dynamic, Two-Plane Balanced to ISO 6.3 Specifications. The Same as Aircraft Turbine Rotors.
Filter Media - 110 Sq. Ft. per Filter (220 Sq. Ft. Total)
-
Filter Media Captures 99.9% of Test Material from 0.2 - 2 Microns @ 11 FPM / Accredited, Independent Lab Tested
Sound Level -
With Standard Silencer & Filter: 84 - 85 dBA @ 10’
Dust Bin -
55 Gallon Steel Drum.
Included - Patented Internal Silencer
- Remote Starter
- FREE D.I.Y. Duct Design Guide
- Filter Grounding Wire
-
Dust SentryTM - Infrared Drum Level Sensor
Options not included but can be added - Duct Design Service
- Drum Liner Plastic Bag Hold-Down System
