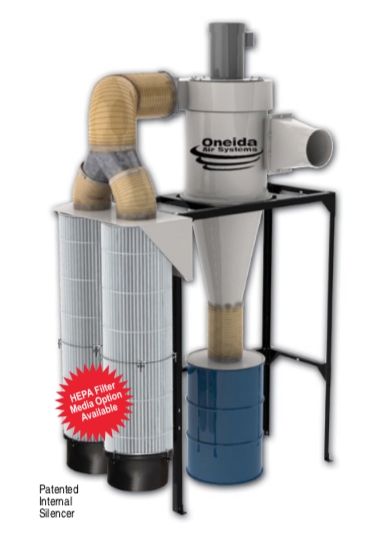

Oneida 7.5hp Direct Drive Dust Collector
Machine Available
Stock #240400N
New- Oneida Air Systems, Inc. was founded in 1993 to bring cost effective, state-of-the-art dust collection systems and material handling ductwork to woodworking shops. OAS designs and manufactures industrial grade dust collection systems that create a prac- tical, safe and healthy work place environment.

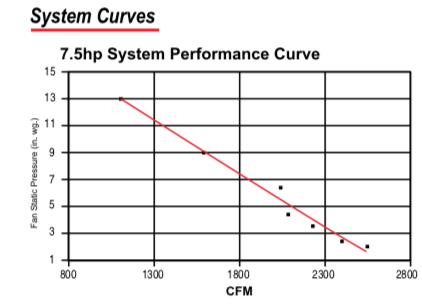

System Performance -
2725 Max. CFM @ 1.7” S.P.
System Dimensions - Height w/ 55 Gallon Drum: 130”
- Footprint w/ Ext. Cartridge: 80.3” x 39.2”
- Inlet Diameter: 10” w/ Neutral Vane
- Outlet: Rectangle to 12” Round
- Powder Coated Paint Finish Over Heavy Gauge Steel
-
Weather-Proof Cyclone and Fan Blower
Integral Fan Blower - U.S. Made Baldor
- 7.5hp Three Phase
- TEFC Motor, 1.0 Service Factor
- Insulation Class F
- Voltage: 208-230/460V
- Amperage: 19-17.2/8.6A
-
Cast Aluminum Alloy 380 / Backward Inclined / Non-Sparking, Non-Ferrous as Required by NFPA Fire Code / Dynamic, Two-Plane Balanced to ISO 6.3 Specifications. The Same as Aircraft Turbine Rotors.
Filter Media - 310 Sq. Ft. (2)High Efficiency Axtar Spun-Bonded Media
- Accredited, Independent Lab Tested
- Teflon-Like Coating to Facilitate Dust Cake Release
-
Filter Media Captures 99.9% of Test Material from 0.2 - 2 Microns @ 11 FPM
Sound Level -
With Standard Silencer & Filter: 83 dBA @ 10’
Dust Bin -
55 Gallon Steel Drum. Other Sizes & Types Available.
Included - Filter Efficiency Gauge
- Magnetic Starter
-
Ductwork Design Service
Options not included but can be added - Bag Gripper, Plastic Bag Hold-Down System
- Hoppers / Multiple Drums
- Bin Level Indicator
- Airlock
- Heavy Duty Angle Iron Stand
- Filters / GE HEPA (H-12) Filter Media
- Patented Internal Silencer
