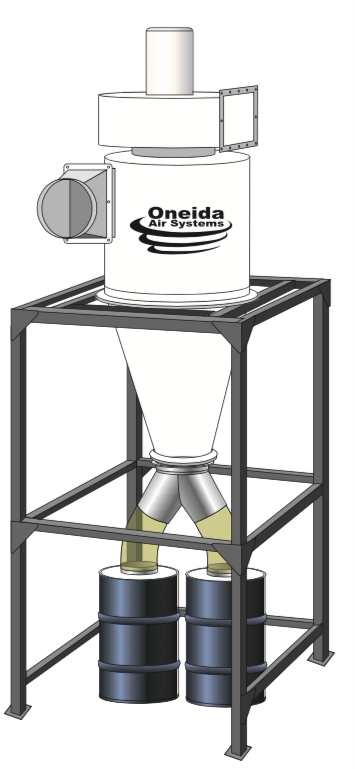

Oneida 15hp Direct Drive Base System - No Filter

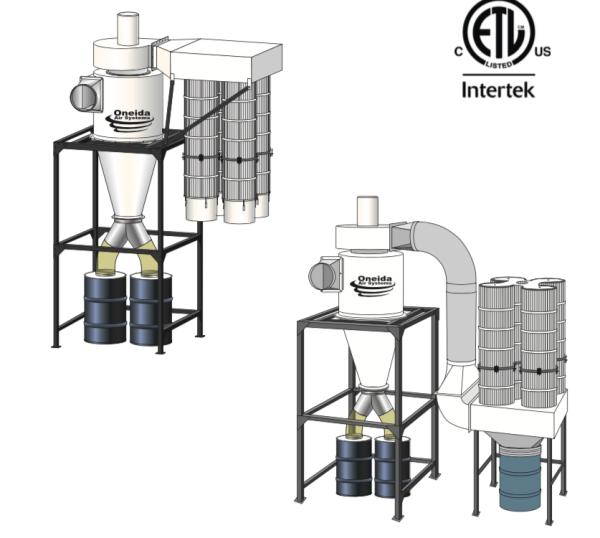

• The 15hp System consists of the system components on this page and your choice of a filter option. Or, use the system with no filter and exhaust the cyclone outdoors.
  System Performance
• 2725 Max. CFM @ 1.7” S.P.
  System Dimensions
• Height w/ 2x 55 Gal. Drum: 172 3/4”
• Footprint 62” x 110” Plenum Kit 1
• Footprint 62” x 138 1/2” Plenum Kit 2
• Cyclone Inlet Diameter: 14”
  Fan Blower
• Made in USA NYB, 15 horsepower
• Three Phase: 208 - 230/460V
• 37.5 - 34/17A
• Backward Incline, Size 18, PLR Wheel

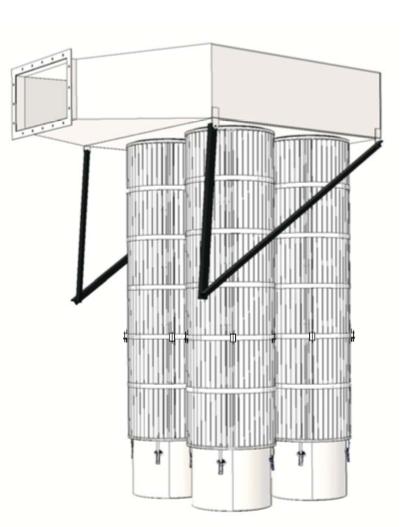

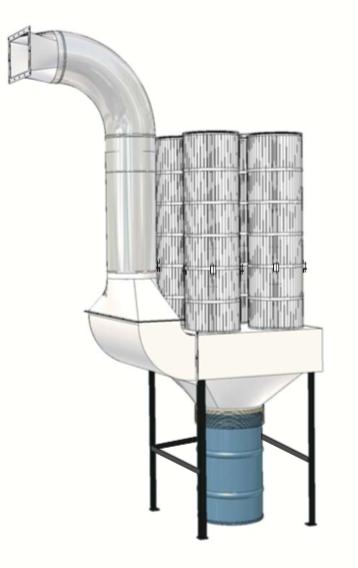

  Cartridge Filters
• 4 Cartridge Filters Standard 155 Sq. Ft. each
• Spun-Bonded Polyester Filter Media
• BIA ZH1/487 Rated C
• Captures 99.9% of test material between 0.2 - 2.0 microns @ 11 FPM face velocity.
  Dust Containers
• (2) 55 Gal. Drums
• Multiple Dust Bin Connections available
• Hoppers Available
• Airlocks Available
