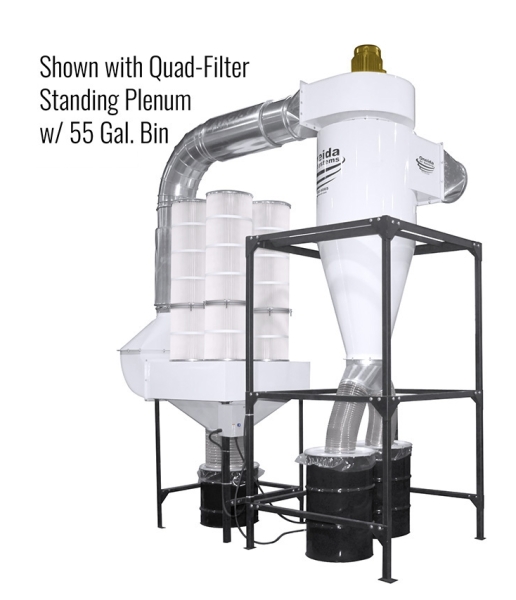

Oneida 20 hp Direct Drive Base System - No Filter
Machine Available
Stock #240600N
New- Oneida Air Systems, Inc. was founded in 1993 to bring cost effective, state-of-the-art dust collection systems and material handling ductwork to woodworking shops. OAS designs and manufactures industrial grade dust collection systems that create a practical, safe and healthy work place environment.
System Performance -
3800 CFM @ 12” SP
System Dimensions - Height w/ 55 Gallon Drum: (20hp) 179”
- Footprint w/ Ext. Cartridge: 63” x Approx. 138 1/2”
- Rectangular Inlet (20hp) 16” dia.
- Full Welded Inlet w/ Neutral Vane
- Outlet: Rectangle (Square to Round Adapter Available)
- Powder Coated Paint Finish Over Heavy Gauge Steel
- Weather-Proof Cyclone and Fan Blower
-
Fully Seam-Welded Construction
Integral Fan Blower - U.S. Made Baldor
- 20 Horsepower Three Phase
- TEFC Motor, 1.15 Service Factor
- Insulation Class F
- Voltage: 208-230 / 460V
- Amperage: 50.1 - 46 / 23A
-
Welded carbon steel / Backward Inclined / Dynamic, Two-Plane Balanced to ISO 6.3 Specifications. The Same as Aircraft Turbine Rotors.
Filter Media - 620 Sq. Ft. (4) High Efficiency Axtar Spun-Bonded Media
- Accredited, Independent Lab Tested
- Teflon-Like Coating to Facilitate Dust Cake Release
-
Filter Media Captures 99.9% of Test Material from 0.2 - 2 Microns @ 11 FPM
Sound Level -
With Standard Silencer & Filter: 82 dBA @ 10’
Dust Bin Heavy Duty One Angle Iron Stand - Filter Efficiency Kit
- Magnetic Starter
-
Square to Round Inlet Adapter to 16” Dia.
Options - Hoppers
- Bag Gripper, Plastic Bag Hold-Down System
- Bin Level Indicator
- Airlock
- GE HEPA (H-12) Filter Media
