Maggi System 35 Construction Line Borer
Machine Available
Stock #061200N

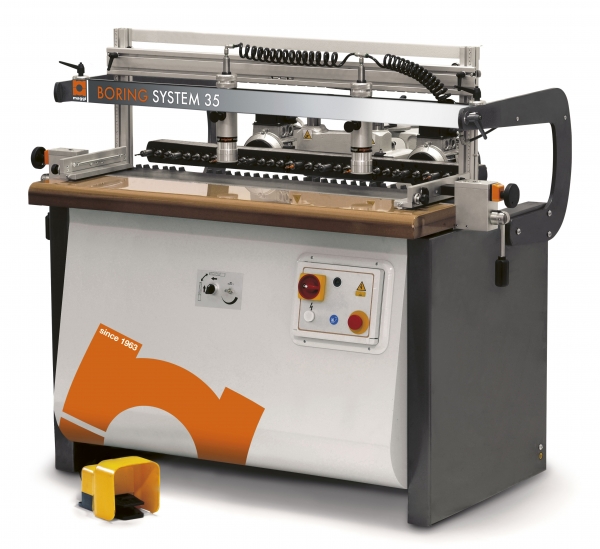

New- Maggi System 35 Construction Line Borer

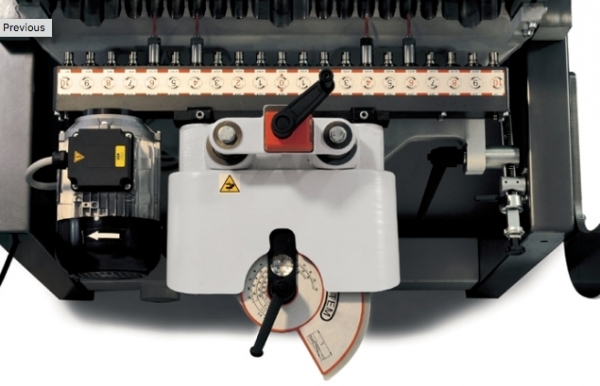

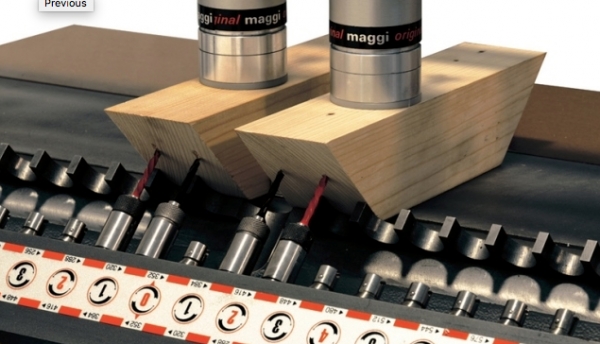

- The Maggi System 35 Boring Machine provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout 0 to 3.25" adjustable drilling depth with patented spiral setting device.
- (4) patented quick release material clamps with auto-setting to firmly hold material to table
- (2) Powerful 2 HP motors

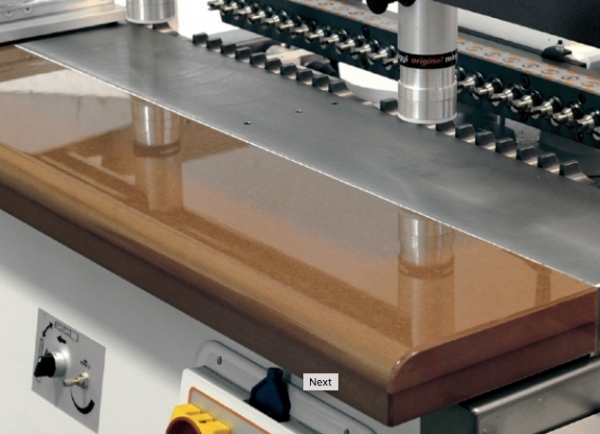

- 52.4" x 16.2" cast iron and MDF table, the MDF portion of the table is treated with non-scratch paint for highest operator comfort and to help prevent scratching of the panel
- Side fences with mechanical digital readout for quick and accurate setting
- 120" line boring fence with (4) stops
- Foot actuated pneumatic clamps and drill cycle

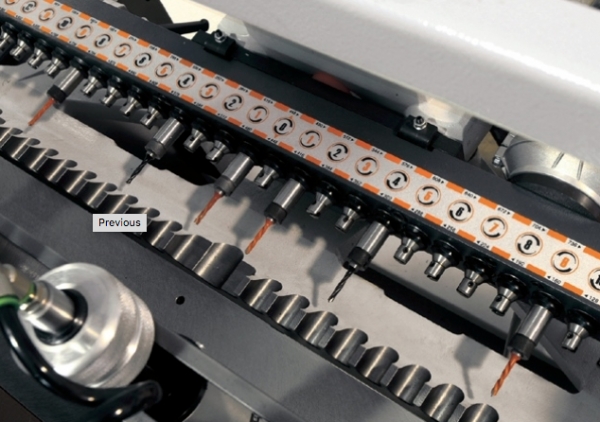

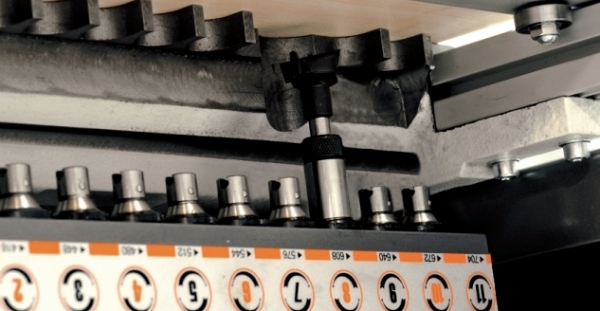

- Magnetic Starter with overload protection and (35) quick change chucks
- Dust Outlet: 3"
- Net weight: 705 lbs
- Dimensions: 65.75" x 38.9" x 50" Tall
- Crated Dimensions: 59.8" x 37.4" x 40.5" Tall
- Crated Weight: 995 lbs.
- 230v, 3ph
