Mellott Rollcase Standard, Jump Skid, Rooftop w/ Flooring
Machine Available
Stock #441500N
New- Mellott Rollcase Standard, Jump Skid, Rooftop w/ Flooring
- Conveying Equipment - Rollcases

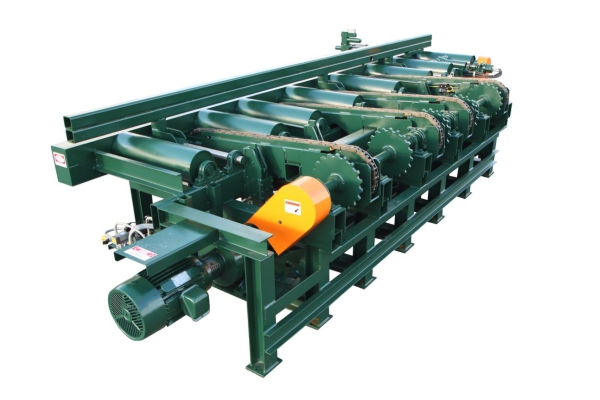

The Mellott rollcases are built to handle lumber, cants and packages of material efficiently throughout your operation.
Mellott has an onsite engineering and design team capable of meeting your specific needs. We will consult and coordinate with you to provide the best options for your application.
Main System Components - Roll Diameter Standard Options: (Custom Sizes Available)
-
Standard Duty:
6-5/8" Diameter x 24" Face with 1-7/16" Shafts -
Medium Duty:
8-5/8" Diameter x 30" Face with 1-15/16" Shafts -
Heavy Duty:
10-3/4" Diameter x 30" Face with 2-7/16" Shafts - Bearings: Rexnord Piloted Flange and Pillow Block Bearings
- Height: Standard 32" Top of Rolls
- Electric Drive: Sumitomo Cyclo Reducer with 3 HP, 5 HP or 7 HP TEFC Motor (as required)
-
Hydraulic Drive: Eaton Hydraulic Motor with Browning RS7Q Coupling
Roll Drive Options: - Chain Driven: RC60, RC80 or RC100 Chain with Double-Single Sprockets and Taper Lock Bushings
-
Belt Driven: V-Belts with Fenner Belt Tensioners and TB Woods Sheaves and Bushings

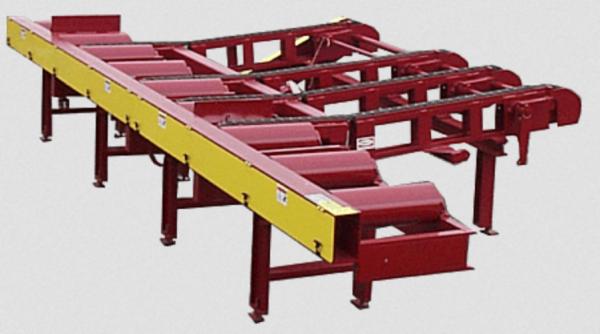

Mellott Rollcase with Jump Skid Transfer
Jump Skid Transfer is an economical unit for delivery of lumber to edger or resaw. It also has the capability of allowing lumber to pass over the roll section to other rolls, bypassing the edger. - Remote control is provided for the operator (sawyer or edgerman).
- Foot switch activates stop gate which halts forward movement of lumber.
- Transfer chains automatically raise, moving lumber from roll section to transfer.
- Sequence can be repeated for each piece of lumber or control may be locked in position so that every piece of lumber will be moved by the transfer to the edger.
- A remote, fully automatic, self-canceling, push-button control system is available as an option.
-
Transfer section has its own drive and the roll section can be driven from an optional, drive or from adjacent live roll sections.
Main System Components -
Roll Diameter Standard Options: (Custom Sizes Available)
Standard Duty: -
6-5/8" Diameter x 24" Face with 1-7/16" Shafts
Medium Duty: -
8-5/8" Diameter x 30" Face with 1-15/16" Shafts
Heavy Duty: - 10-3/4" Diameter x 30" Face with 2-7/16" Shafts
- Bearings: Rexnord Piloted Flange and Pillow Block Bearings Height: Standard 32" Top of Rolls
- Electric Drive: Sumitomo Cyclo Reducer with 3 HP, 5 HP or 7 HP TEFC Motor (as required)
-
Hydraulic Drive: Eaton Hydraulic Motor with Browning RS7Q Coupling
Roll Drive Options: - Chain Driven: RC60, RC80 or RC100 Chain with Double-Single Sprockets and Taper Lock Bushings
-
Belt Driven: V-Belts with Fenner Belt Tensioners and TB Woods Sheaves and Bushings

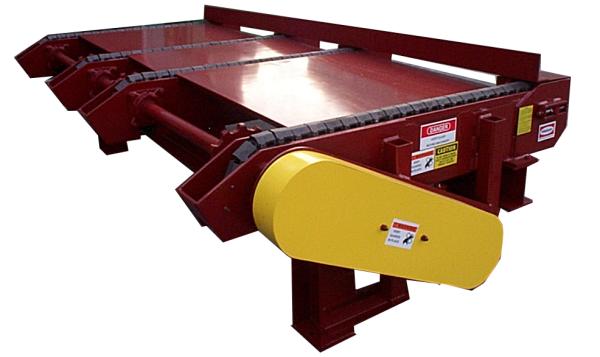

Available Rooftop Transfer with Flooring
