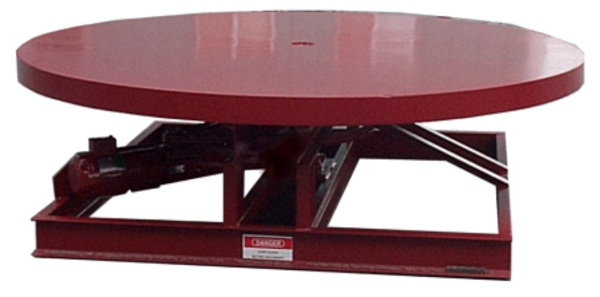

Mellott Turntable - 8' Diameter

• Mellott Turntable - 8' Diameter
• Lumber Handling Equipment -  Turntable
  The Mellott Turntable can be placed at the end of live rolls or belted section to receive lumber that has been gang sawn. The lumber is then pulled from the turntable for secondary operations or stacking. These turntables can be used in mills where pallet lumber is being cut and provide an economical method of collecting gang sawn material.
  An optional adjustable base is available. This base is adjustable in the horizontal position and permits the turntable to be pulled away from the rolls to allow longer lumber to be fed onto the turntable.
  Mellott has an onsite engineering and design team capable of meeting your specific needs. We will consult and coordinate with you to provide the best options for your application.
  Main System Components
• Turntable Diameter: 12 ft., 10 ft., or 8 ft.
• Height: 33" Standard, 28" Minimum
• Speed: 1.5 RPM
• Drive: Dodge Tigear Reducer with 1 HP 1800 RPM Motor
• Shaft: 2-15/16" Diameter
  Options:
• Base: Adjustable Base ( 24" Horizontal Movement)
