Mellott Vibrating Conveyor

• Mellott Vibrating Conveyor
• Conveying Equipment -  Vibrating Conveyor

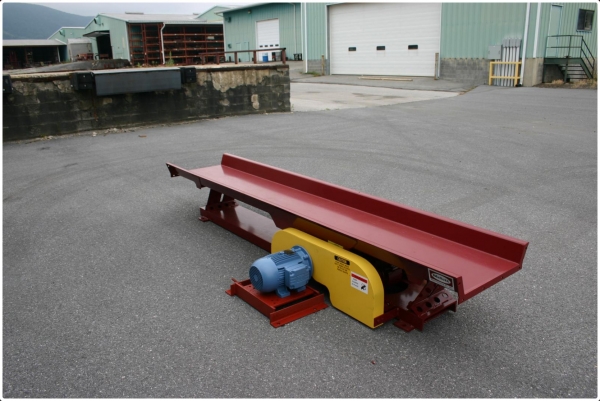

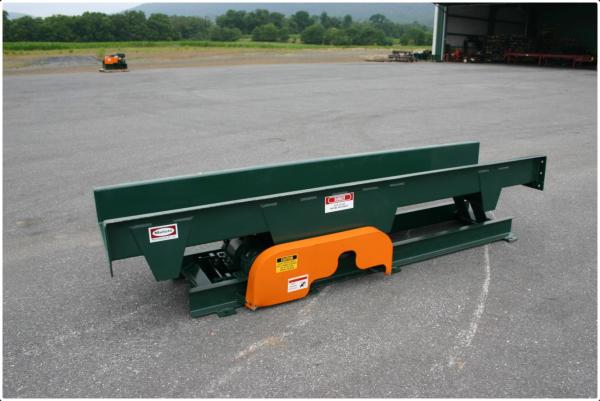

  Mellott Manufacturing offers a full line of standard and heavy duty Vibrating Conveyors. These conveyors are used for multiple mill applications, from simple transfer conveyors, to severe duty sawdust screen chipper infeed units.

The conveyors are available in a variety of pan sizes and lengths. Mellott conveyors may also be sized to fit the customer's specific applications, with pan sizes from 12" up to 16 ft. wide vibrating tables. We offer a metal detector used with a fiberglass section for improved chip quality.
  Mellott has an onsite engineering and design team capable of meeting your specific needs. We will consult and coordinate with you to provide the best options for your application.
  Main System Components
  STANDARD DUTY VIBRATING CONVEYOR:
• Pan Material: Formed 1/4" Steel Trough, Flared 45 Degrees
• Bottom Width: 19"
• Top Width: 25-1/4"
• Trough Depth: 4"
• Drive Options - 1.3 HP PER 10 FT: 5 HP, 10 HP, 15 HP or Hydraulic Drive
  HEAVY DUTY VIBRATING CONVEYOR:
• Pan Material: Formed 1/4" Steel Trough, Straight or Flared 45 Degrees
• Bottom Width: 24" or 30"
• Top Width: 29-13/16" or 35-13/16
• Trough Depth: 8"
• Drive Options - 2 HP per 10 Ft.: 5 HP, 10 HP, 15 HP or Hydraulic Drive
• Note: (Maximum 70 ft. per Drive)
  Options
• Fiberglass Section: 60" Lg. NOLCO Fiberglass made by MDI
• MDI Metal Detector: MP-2000 Series MP24-S or MP30-S Digital Metal Detector System
