SNX Technologies nVision System 2 G3 Contour Edgebander
Machine Available
Stock #252200N

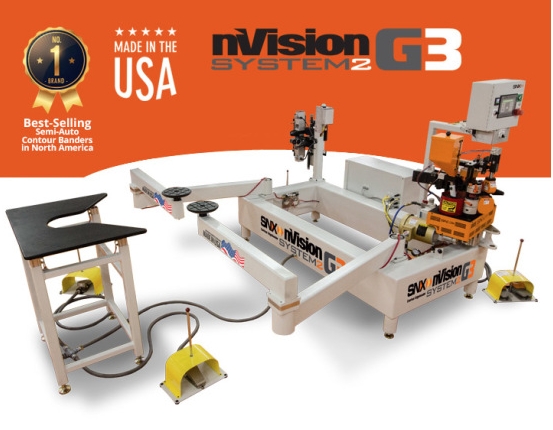

New- SNX Technologies nVision System 2 G3 Contour Edgebander
- The SNX nVision SYSTEM2 G3 contour edgebander is designed to take shaped part banding throughput to the next level. It's based on our ground-breaking original nVision SYSTEM1machine, and comes with all the features and its patented technologies. The SNX SYSTEM2 G3 features an extended base frame to accommodate more area for banding and trimming at the same time. That means non-stop production. A foot pedal activated mid-point transfer station accepts the finished banded part, raises it from the vacuum pod and then lowers the part onto the trimming pod arm at the press of a foot pedal. If you're looking to increase the number of shaped panels you band every shift, every day, the SNX nVision SYSTEM2 G3 contour bander is the logical choice.
- Non-stop operation utilizing twin vacuum arms and three workstations

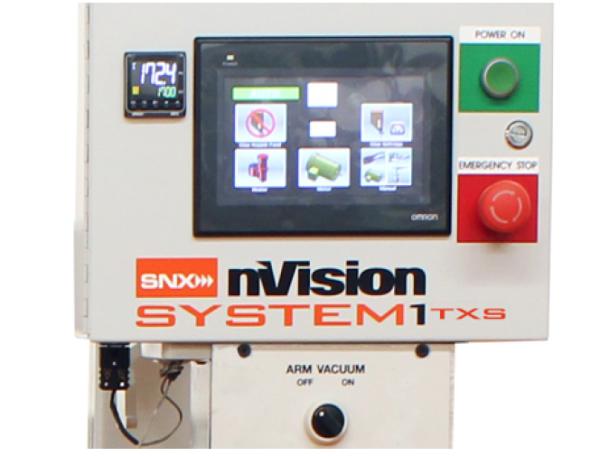

- Large touch screen controller
- Heavy duty frame construction

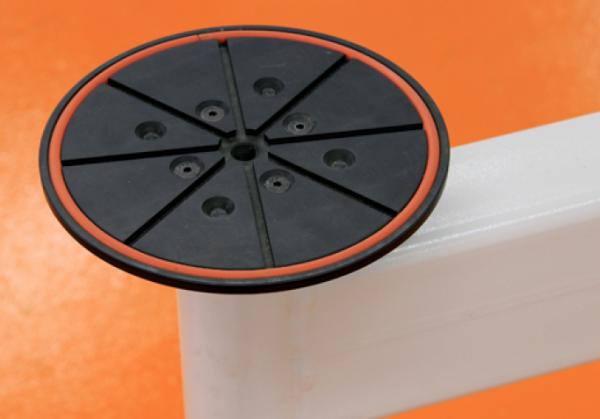

- Large heavy-duty movable vacuum pod arms for ease of operation (max panel weight 230lbs)

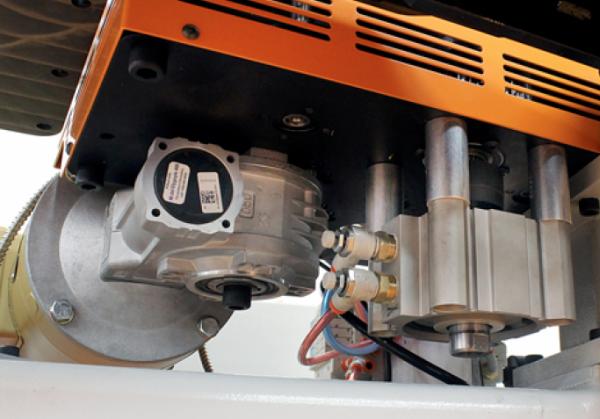

- State-of-the-art electronic control systems and High Frequency motors

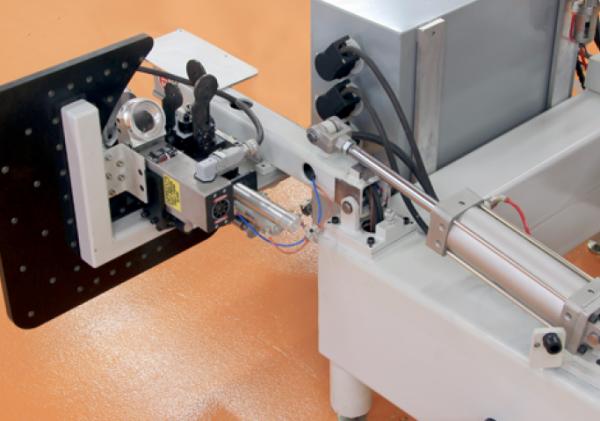

- Triax 3-Axis laser system to insures consistently tight butt joints on panels. (Patent Pending)

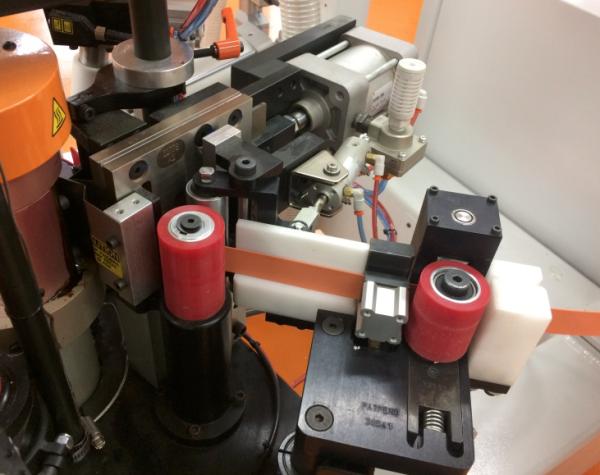

- Designed to apply hot melt EVA adhesive and edgebanding (0.5 to 3mm edgeband thickness)

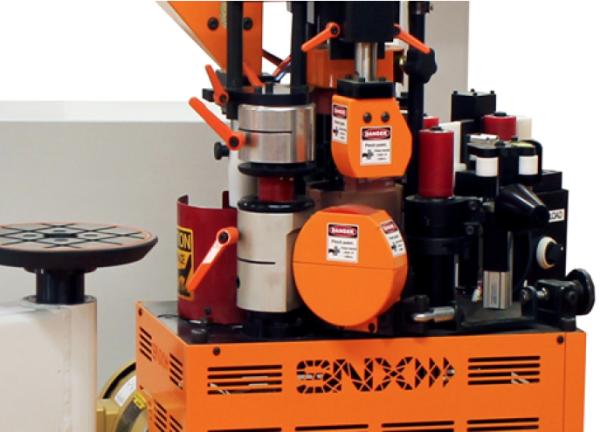

- Trimming unit will facilitate trimming of the top and bottom overhang of the edgebanding
- Armordrive Kevlar lower BELT drive system for smooth, quiet, long life operation. No lubrication.
- Compact size machine requires minimal shop floor space
- Engineered for utmost machine stability even with large or heavy parts
