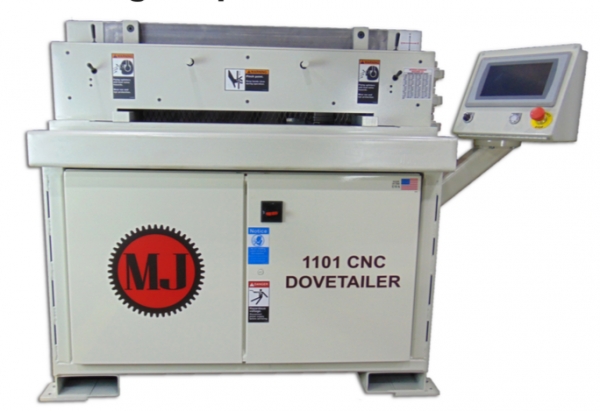

Mereen-Johnson Model 1101 CNC Dovetailer

• Mereen-Johnson Model 1101 CNC Dovetailer
• Mereen-Johnson’s CNC Dovetailers offer the quality construction, precision, reliability, and low cost of ownership you’ve come to expect from this industry leader.
• This unique machine offers production flexibility combined with lightning fast changeovers providing an affordability within reach of any size shop.
• The Model 1101 CNC Single Spindle Dovetailer features a a 3HP high speed spindle motor.
• Variable speed spindle up to 20,000RPM
• Optional scoring pass to reduce tearout.
• Collet type tool change, increases flexibility with different types of bits/cutters.
• Automatic partial tenon removal (No special tools required).
• Able to Load multiple parts while spindle is in operation.
• Create half-blind, box joint and French dovetails.
• Change pitch, size and pattern of dovetail in seconds from operator console.
• Resharpened bits easily accommodated using cutter compensation.
• Tenon/mortise fit is easily adjusted from the operator console.
• Part thickness changeovers are made in seconds from the operator console.
• Programmable cutting speeds with high speed non-cutting moves between zones.
• Production Rate 60 Boxes Per Hour (based on 4 dovetails being cut)
• Max. Cutting Speed 5” Inches Per Second
• Feeding Height 35 Inches
• Material thickness is 3/8” to 3/4" on standard drawer boxes. Drawer height is 1-3/4" to 28", minimum width is 6", and depth is 7".
• One 3 HP fan cooled Colombo motor with extruded aluminum housing driving spindle up to 20,000 RPM. Collet style tool holder.
• "X" / "Y" Axes individually driven by servo motor with precision roller pinion system. Rack engages two teeth simultaneously to achieve high accuracy and zero backlash.
• Manual pneumatic acuation by linear actuator. Able to load multiple parts while spindle is cutting.
• One carbide tipped router tool included.
• One 6" diameter dust collection point, 900 cfm required, based on 5000 fpm velocity and 4" w.g.
• Intermittent air requirement only. 1/2" N.P.T. Air drop requires 1 cfm at 80 psi.
• Options at additional cost:
• Dovetailer cutter, 10mm, 10 degree, 14mm shank
• Straight cutter 1⁄2” with collet
