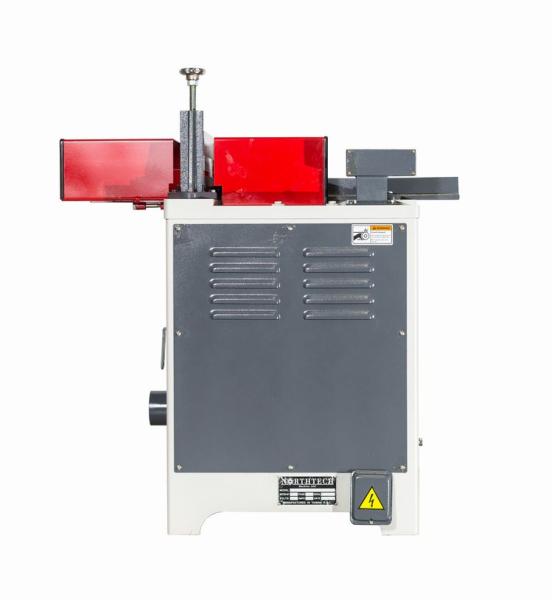

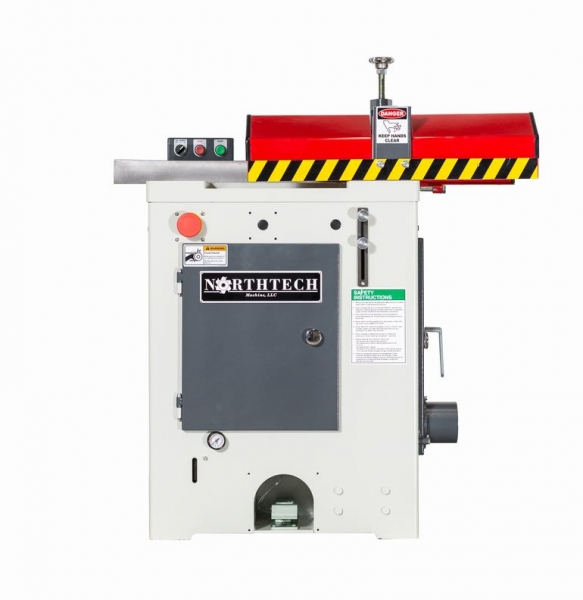

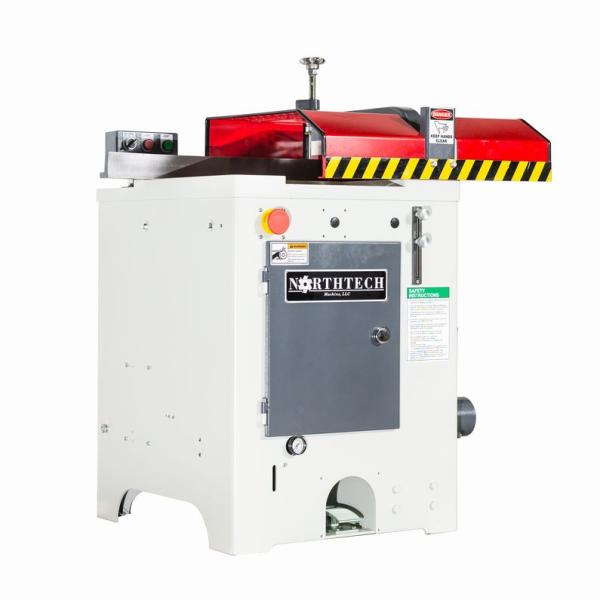

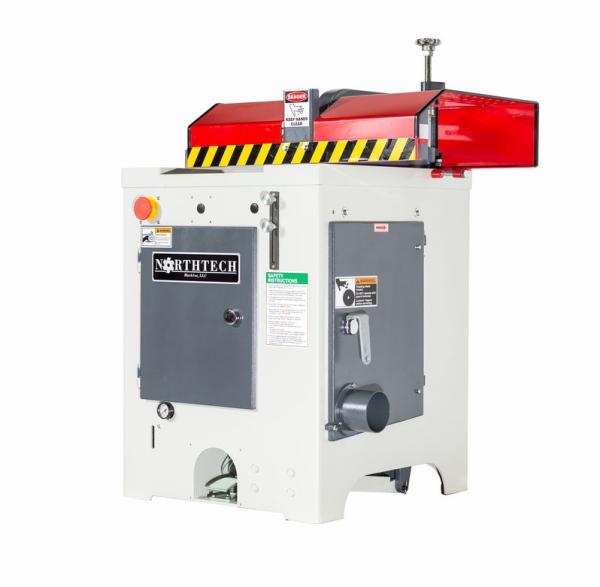

Northtech Model NT-UCS18 Up Cut Saw

Machine Available
Stock #812800N
New
   CALL FOR PRICE

  • Northtech Model NT-UCS18 Up Cut Saw
  • Max cutting capacity: 1" x 13", 2" x 12", 3" x 11", 4" x 10"
  • 10HP motor, 3PH 230V with 24V magnetic controls
  • 18” 120T Carbide tipped blade included
  • 1” Saw arbor diameter
  • Cycle operation: Pneumatic 45 cuts per minute
  • Table size: 26” x 27.25”
  • Adjustable fence 2" x 25"
  • Quick access on front of the machine to adjust blade stroke
  • Dust requirements: (1) 4" dust port requiring 436 CFM at point of extraction
  • (1) Tool box and manual
  • Cutting Envelope 1" x 13", 2" x 12", 3" x 11", 4" x 10", 4-1/2" x 8"
  • 10HP arbor motor
  • Pneumatic hook up with slide shut off, filter lubricator, and regulator
  • Gravity flip stops provide quick reference without relocating stops, (2) included
  • 18", 120T Tungeston Carbide Tipped Blade included
  • All electrics organized in dust proof box
  • Quick hood adjustment allows operator to set minimum clearance over part for increased productivity and safety

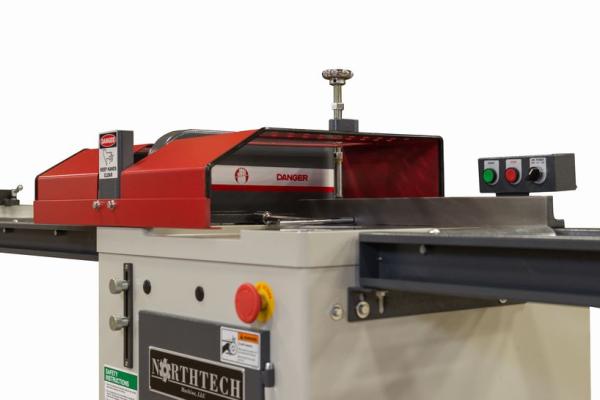

  • Full guard with clear view windows protects operator while maintaining visibility at point of cut

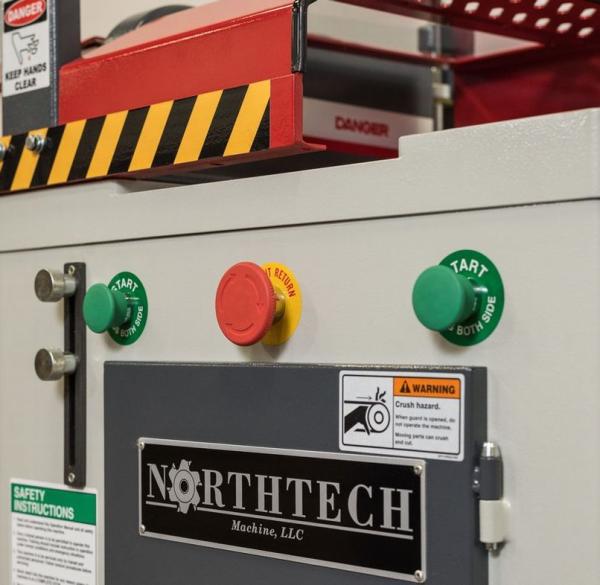

  • Front mounted Emergency Stop for quick access, shuts electrical power off to blade and immediately terminates air supply returning clamp and blade to home position
  • Control center with pneumatic shut off
  • Double action cylinder ensures part hold before blade begins cut
  • Blade cycle adjustment is easily controlled from the front of the machine through quick lock knobs
  • Tool box including all applicable tools, wrenches, as well as operators manual are included
  • Optional gravity flip stops provide quick reference of lengths without relocating stops, not included

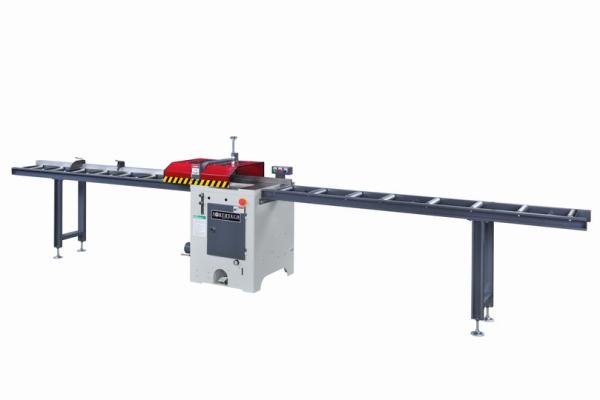

  • Infeed and Outfeed options available at extra cost, 8' and 16' options
