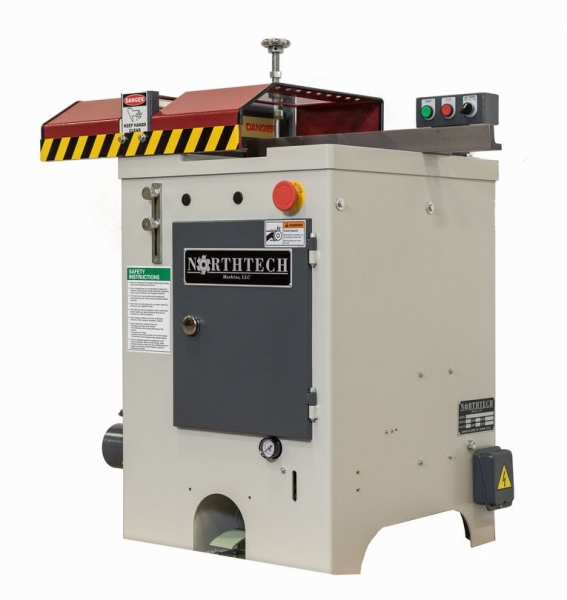

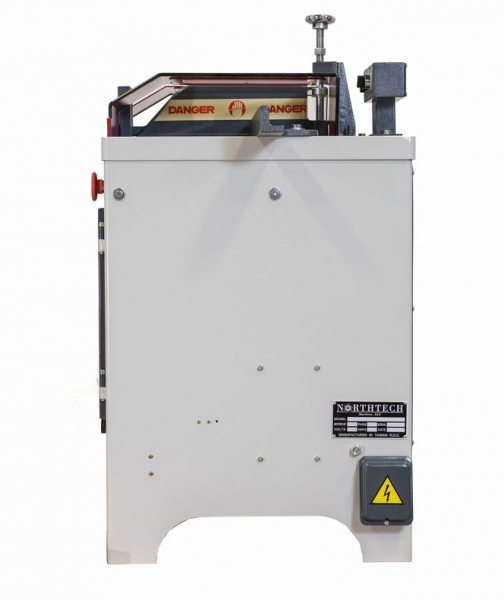

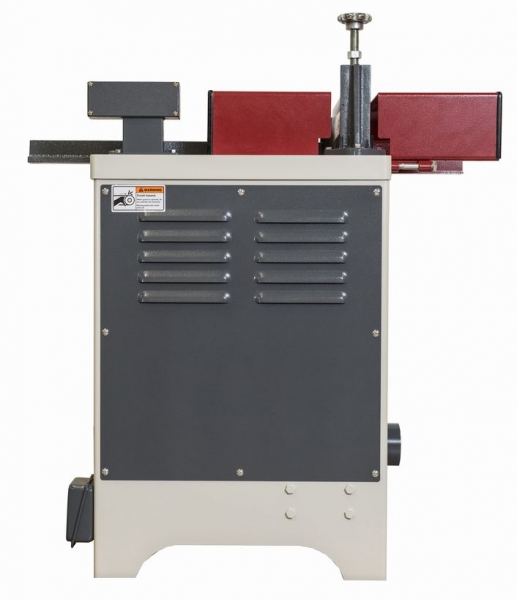

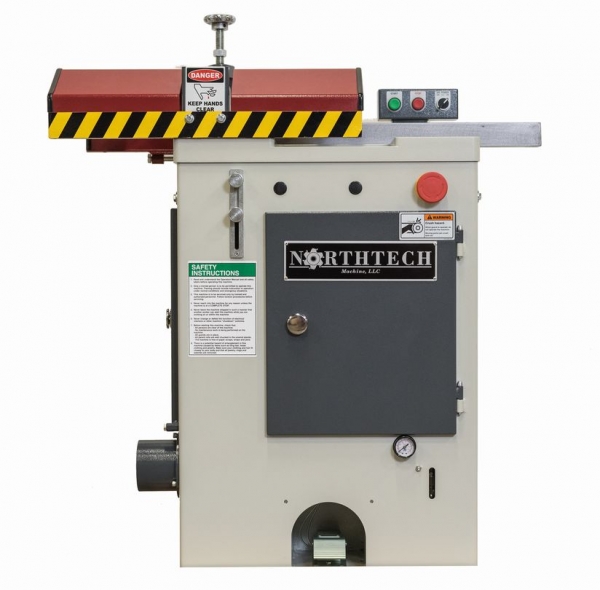

Northtech Model NT-UCS-14 L or R Up Cut Saw

• Northtech UCS-14 L or R Up Cut Saw
• Max cutting capacity: 1" x 11", 2" x 10", 3" x 9"

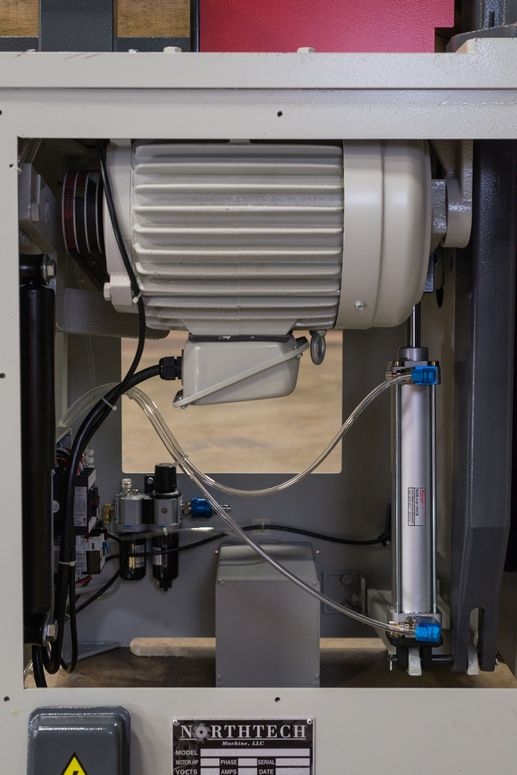

• 7.5HP motor, 3PH 230V with 24V magnetic controls

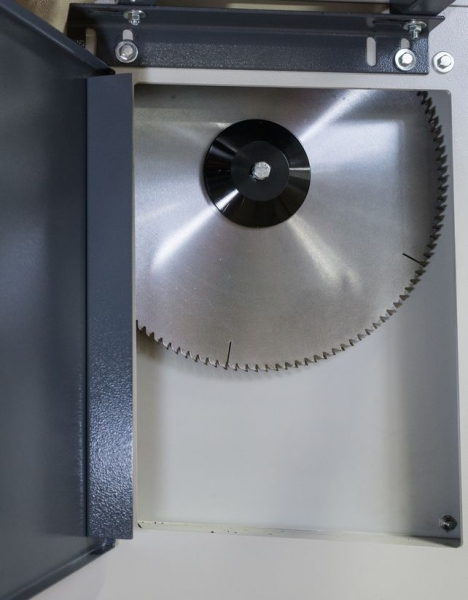

• 14” 100T Carbide tipped blade included
• 1” Saw arbor diameter
• Cycle operation: Pneumatically adjustable up to 78 cycles/minute
• Arbor RPM: 4260RPM
• Table size: 25” x 23-1/4”
• Fence dimensions: 2" x 25"
• Passline: 33-3/4"
• Quick access on front of the machine to adjust blade stroke

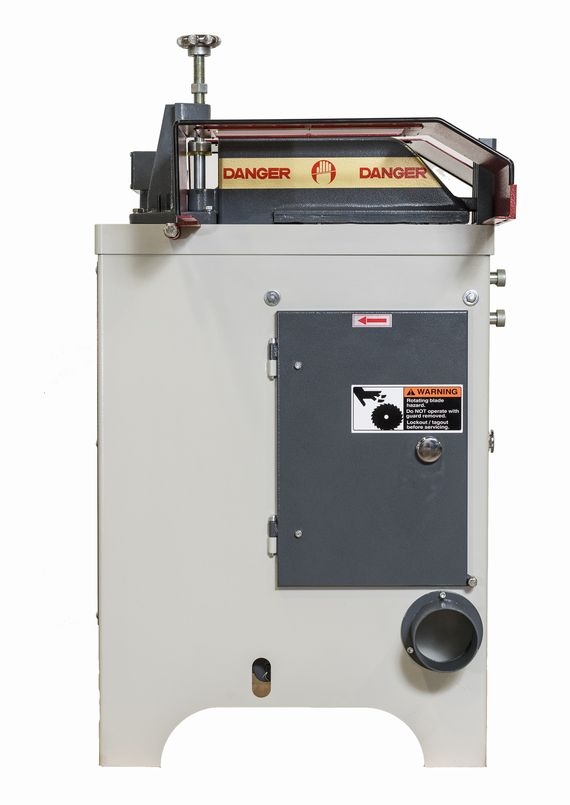

• Dust requirements: (1) 4" dust port requiring 436 CFM at point of extraction
• (1) Tool box and manual

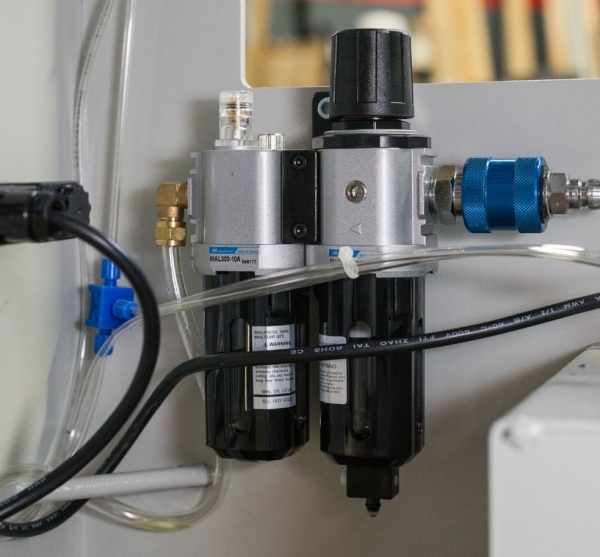

• Central pneumatic hook up with slide shut off and filter lubricator and regulator securely located inside body for added protection
• Pneumatic foot pedal control

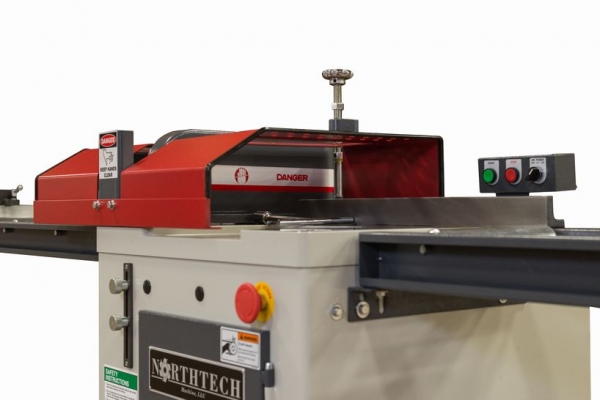

• Quick hood adjustment allows operator to set minimum clearance over part for increased productivity and safety
• Full guard with clear view windows protects operator while maintaining visibility at point of cut

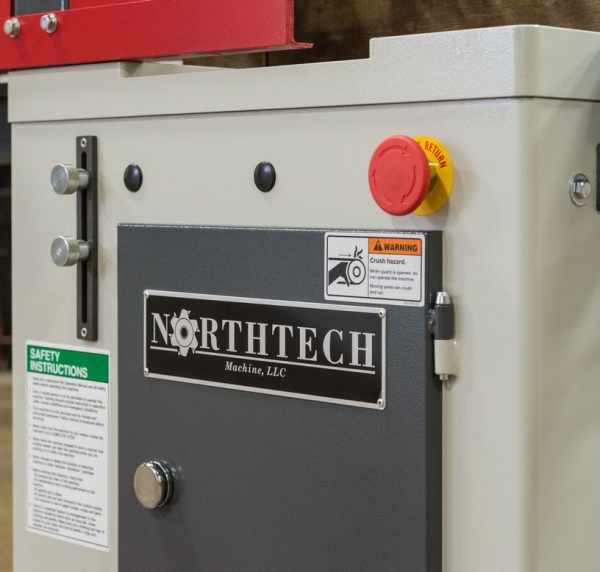

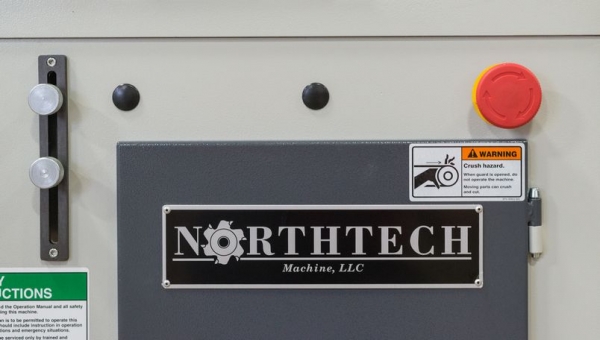

• Front mounted Emergency Stop for quick access, shuts electrical power off to blade and immediately terminates air supply returning clamp and blade to home position
• Control center with pneumatic shut off

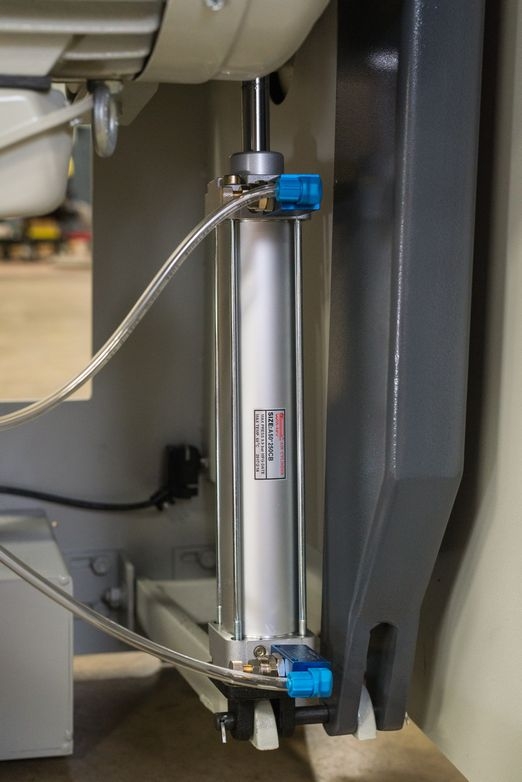

• Double action cylinder ensures part hold before blade begins cut
• Blade cycle adjustment is easily controlled from the front of the machine through quick lock knobs

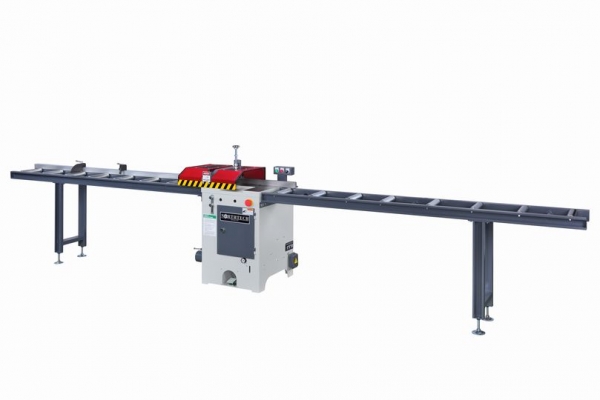

• Optional 8 or 16' infeed/outfeed at additional cost
