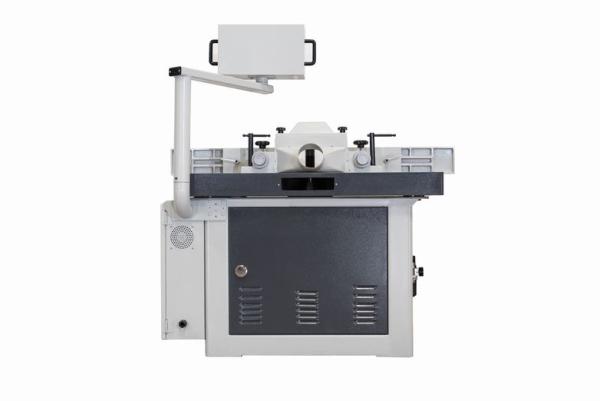

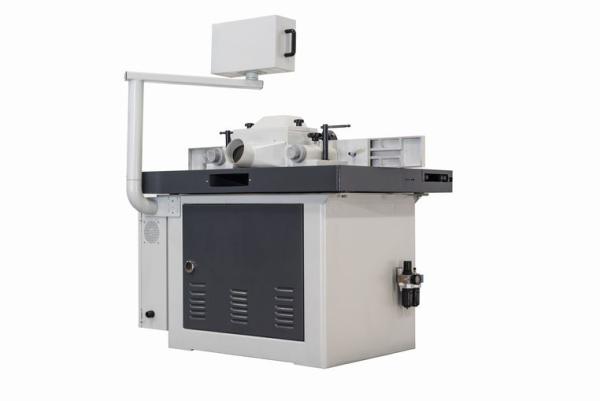

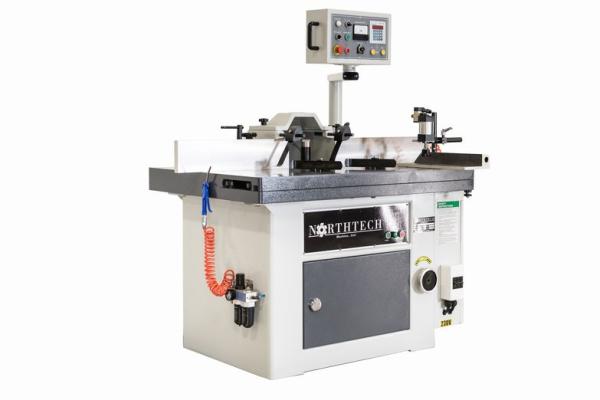

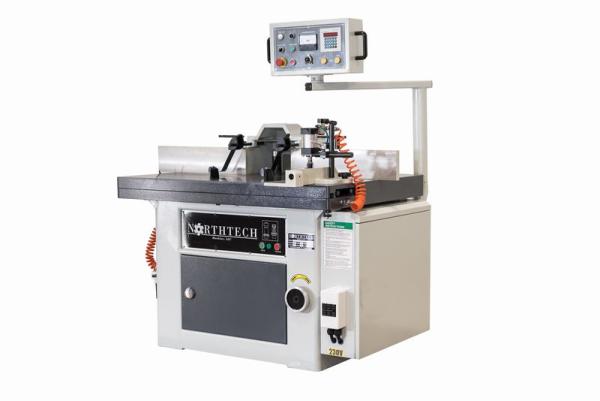

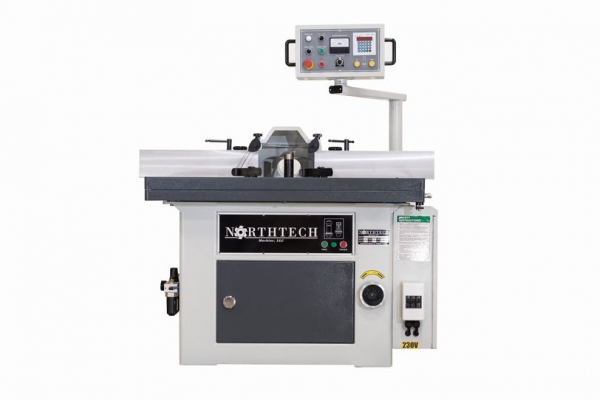

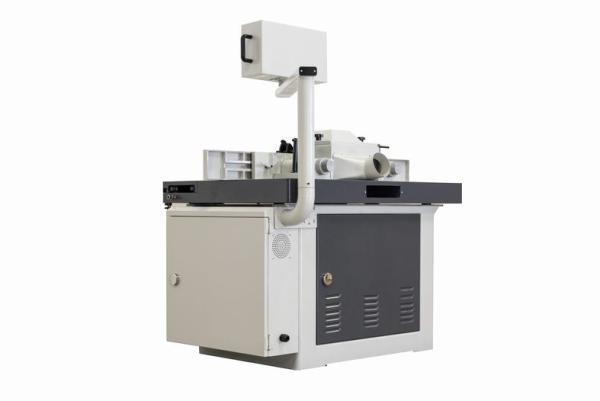

Northtech NT 770HSK Spindle Shaper

• Northtech NT 770HSK Spindle Shaper
• 3,000 - 13,350RPM, 10HP inverter controlled spindle

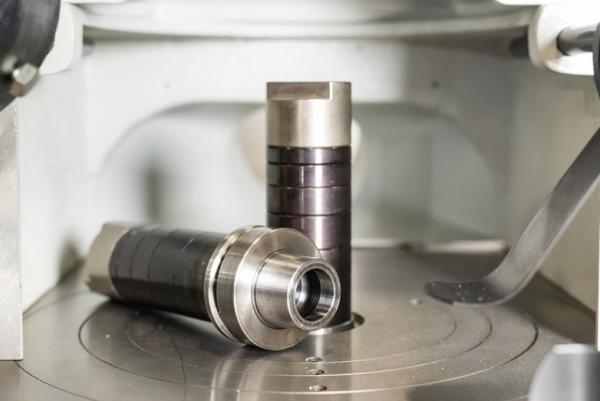

• (1) 1-1/4'' x 4’’ HSK-63F spindle included
• HSK-63F spindle release system is developed by Andi CNC Machining Centers
• Spindle tolerance of .0001"
• Includes sensor light to ensure proper mating of the chucks as well as correct full pneumatic pressure for safety

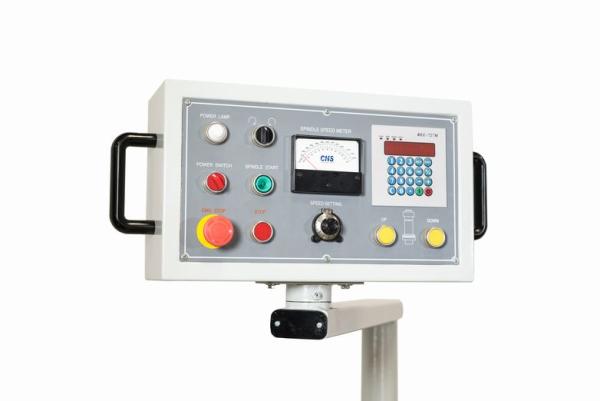

• Moveable overarm control panel

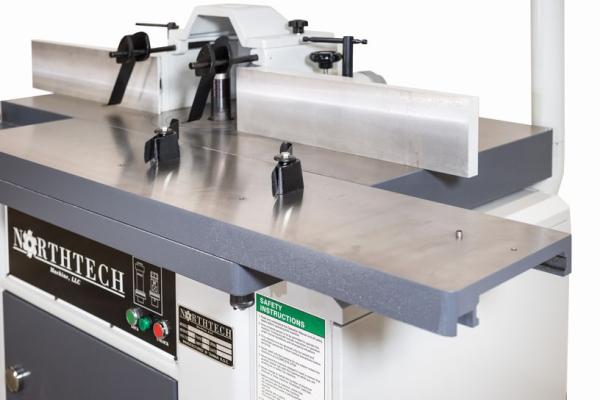

• 35" Ergonomically designed precision milled table
• Machine Hp. = 11 Hp
• Main Motor Hp. = 10 hp
• Reverse Motor = Reversible
• Amp Requirement = 30 Amps
• 1st Spindle = 1-1/4'' x 4'' Spindle
• Spindle Diam. = 1-1/4''
• Under Nut Cap. = 4-1/4''
• Elevation Hp. = 1 Hp.
• Dual Voltage = 230/460 Volt
• Vertical Travel = 4-1/8'' Spindle Travel

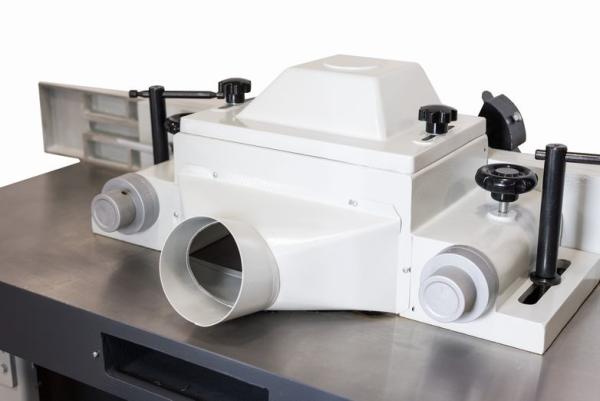

• Dust Collection = (1) 4'' (1) 5'' @ 1117 CFM
• Recommended CFM = 1/4'' Line @ 90 PSI
• Fence Dims. = (2) 5-1/2'' x 24''
• Worktable Dims. = 38'' x 51''
