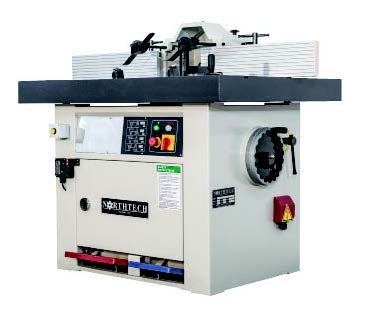

Northtech NT-735 Series Shaper
Machine Available
Stock #931200N
New- Northtech 735 Series Shaper
- 10HP spindle motor
- 1 ¼” spindle 4 speed 3000RPM, 4,500RPM, 6,000RPM, 10,000RPM
- (2) 5-3/4" x 24" micro adjustable fences
- Foot operated spindle lock
- Foot operated spindle brake
- 36" x 48" worktable
- 5” under nut spindle
- 5" vertical spindle travel
- 35" table height
- (1) 5" dust port requiring 681 cfm at point of extraction
- 65db decibel sound rating
- 3PH 230V/460V 60HZ, 25A/12.5A
- Additional Options for Purchase.
- Sliding table
- Tilting spindle assembly (-5° -45°)
- Tilting Spindle / Sliding Table
- Long Table 39" x 88" with front wing extension
- Long Table, Tilting Spindle assembly
- Optional 7” under nut tool holder 1-1/4" and nut (MK5 series)
- Voltage change
- Optional 1" tool holder (MK5 series) only available in standard, not long spindle
- Optional 40mm tool holder and nut (MK5 series)
- M-10 digital LED readout of spindle height (installed)
- DP-727 digital electronic setworks with power raise and lower (factory order) lower plus 99 positions memory / recall
- Front mounted digital readout positioning
- M-10 digital LED readout of spindle height (installed)
- Front mounted positioning for M10 (without M10)
- Digital Readout Height
- Digital Readout Tilt
- Fence positioning
