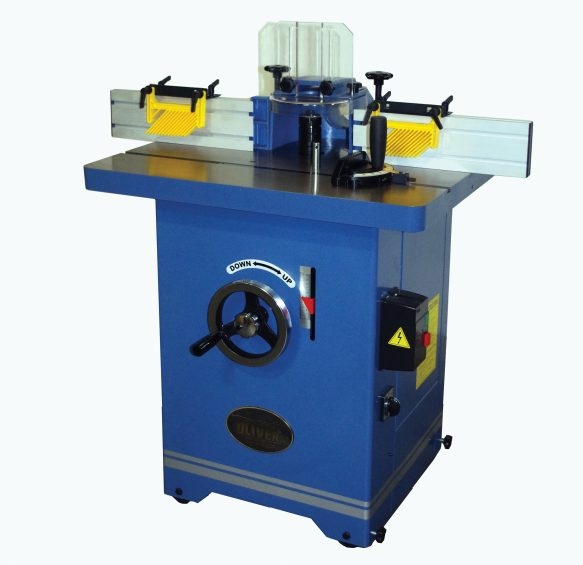

Oliver 10047.001 Shaper 3HP 1Ph

• Oliver 10047.001 Shaper 3HP 1Ph
• Large cast iron table precision ground table provides a solid work surface.
• Full cabinet stand includes wheel and locks.
• 1-1/4” interchangeable spindle included, other sizes available.
• Optional router bit collets available.
• Four spindle speeds for versatility

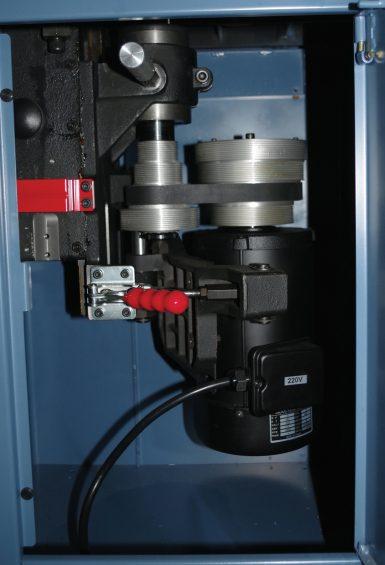

• Belt changes are quick and convenient with unique tensioner.
• Poly V-belt drive for smoother operation.
• Spindle reverses for more options with each set-up.
• Four inches of spindle travel allows more set-up options.
• Starting pin for irregular shapes included.

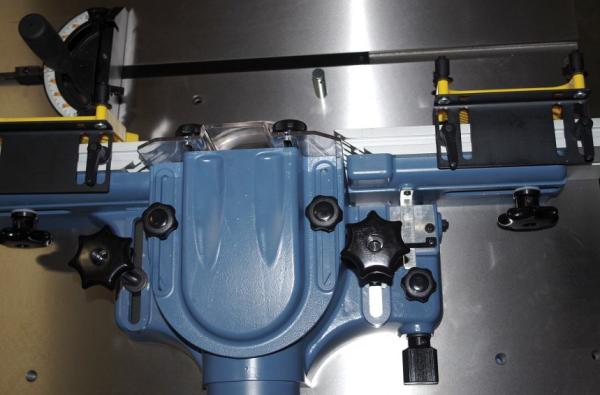

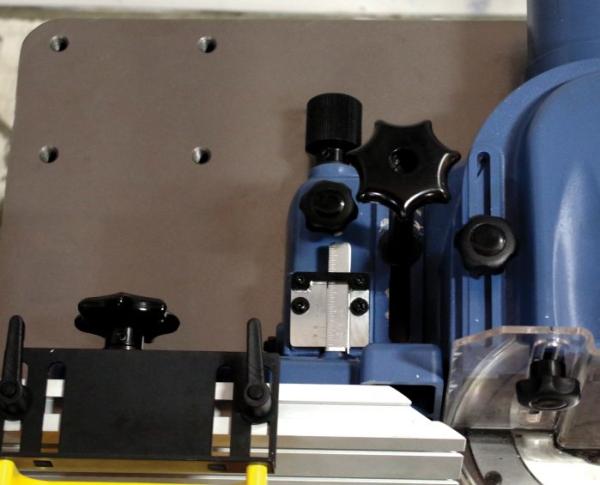

• Fence is independent and includes micro adjustments.

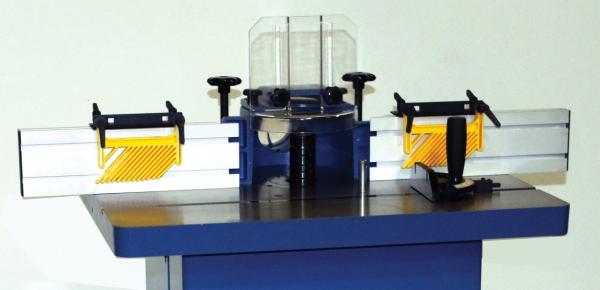

• Adjustable hold downs add to a safer operation.

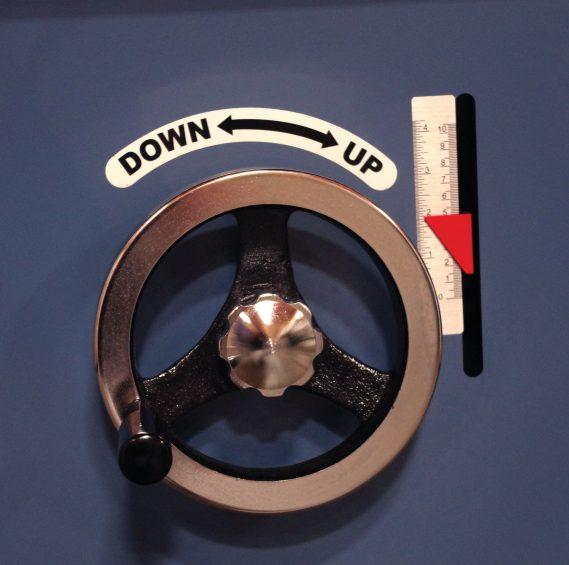

• Extra large handwheel for easy and quick height adjustment.
• Mitre guage included.
• Magnetic controls for added safety.
• Powerful TEFC motor in 3HP or 5HP to meet your needs.
• Under Nut Capacity 4” with 1-1/4” spindle
• Table Opening 6-1/4"
• Large Insert Opening 4-5/16”
• Small Insert Opening 2-1/2”
• Table Height 34”
• Table Size 32” x 26”
• T-Slot Size 3/4” x 3/8”
• Fence Size (2) 4-13/16 x 16”
• Dust Port 4"
• Minimum CFM Required 800
• Motor 10047.001 3HP 1Ph 230V Only
• Motor 10047.002 5HP 1 PH 23oV Only
• Specify motor power when requesting price
