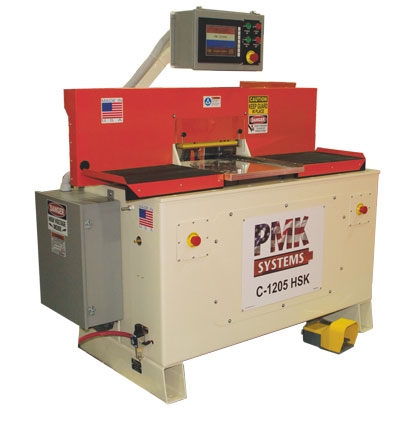

PMK Systems Model C-1205 PLC/HSK Coping/End-Matching Machine
Machine Available
Stock #100500N
New- PMK Systems Model C-1205 PLC with HSK Quick Change Spindles With 8" Touch Screen Monitor & Direct Drive Spindles
- Chip free coping or end-matching of squares or profiled parts without the need of a back-up piece.
- (2) HSK Direct Drive Counter Rotating Spindles, Diameter 1 1/4"
- (4) HSK 63F SPINDLES/TOOL HOLDERS
- Tool holder / Milling arbor 1.25" Length of spindle 55mm, 2.165"
- Both spindles direct drive rotating from 6000 to 9,000 rpm's (variable speed) controlled with PLC & monitor.
- (2) 8.5 kW Motors (11.39HP), 230/460 volts (please specify your voltage).
- New safety interlock safety hood, which will not open till spindles have stopped rotating.
- NEW Safety Hood with glass lenses for checking rotation of spindles.
- Maximum cutter diameter 5" OD, Minimum Cutter diameter 3.5" OD.
- Maximum SIZE of part 1" thick & 13 1/2" wide.
- Minimum length of part 3"
- Maximum depth of cut 3/4"
- Minimum width of part is determined by the O.D. of the cutter and if the part is profiled or not.
- Unlimited length of part
- The C-1205 has External flow valve that allow you to adjust the speed of the sliding table according to the thickness, width & density of the wood you are profiling.
- Cycle time adjustable from 4 to 10 seconds
- Dust Hood with 5" port, CFM's required 1000
- THK style rails for guidance of carriage stroke and hold down clamp.
- Side pressure clamp insures proper alignment with fence.
- The C-1205 meets UL & CSA Electrical Standards.
- Now with PLC Micro Processor
- Machine weight 1,575 lbs. (+/-)
