Taylor Model #713A-8-A 8 Section Stile and Rail Door Pro
Machine Available
Stock #111100N

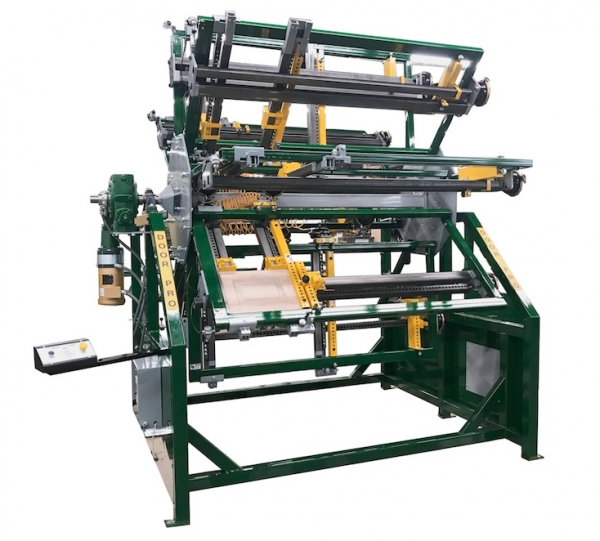

New- Taylor Model #713A-8-A 8 Section Stile and Rail Door Pro
- The Taylor Door Pro clamping system is designed for the medium to large door shop that clamps doors without pinning. The Door Pro is capable of producing up to 350, perfectly squared, stile and rail doors per 8 hour shift with only one operator.
- 8 Rotating Squaring Sections
- 100% Heavy Duty Steel Construction
- Machine Rotation is Counterclockwise for operator safety
- 110 Volt Electric Gear Motor with Variable Speed AC Drive Control System
- Control Box with Single Button Activation for Rotation
- Auto Index Stop Feature
- 26" x 62" Maximum Capacity
- Single Lever Valve Operation
- (1) Horizontal & (2) Vertical Pneumatic Clamps
- NEW Clamping force direct at corner
- NEW Trident Pin System allows for faster setup on cross clamp
- NEW Cylinders located in rear and away from operator
- Precise, Accurate Pneumatic Squaring of Cabinet Doors
- Each Clamp features a 20 square inch heavy duty diaphragm cylinders
- Quick adjusting clamps on rollers for fast, easy changeovers
