Mikron Model M652R Multi-Moulder with Router
Machine Available
Stock #471100N

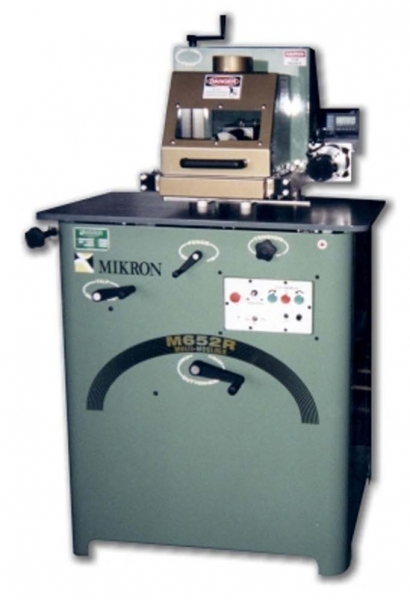

New- Mikron Model M652R Multi-Moulder with Router
- The MIKRON M652R is the first ever horizontal spindle moulder with vertical router attachment! When our engineers designed the MIKRON M652R, we made sure that they kept all the same powerful features of the M645 then added routering capabilities. That means, with a few simple steps, you can replace the spindle with a router mount, providing you with the means to easily router insets and channels on your straight and curved mouldings - ideal for windows, mirrors, pictures, paintings, cabinets, doors, flooring & more! Designed for architectural designers this unique machine provides the quality & productivity levels for woodworking shops everywhere. Our adjustable tilting-arbor head and floating table provides a revolutionary approach and the variable speed motor and precise tracking system allows you to create circular, elliptical and straight mouldings, stair parts, curved crowns, bar rails, door panels, and much more with the greatest of ease.
- Manually tiltable spindle from 0 degree to 52 degree
- Digital readout by Accurate Technology (optional)
- Floating worktable and axial adjustment
- Variable speed feed motor - 0 to 30 feet per minute
- Premium control unit - available in 220, 440, 480 or 575 volt.
- Separately adjustable feed rollers to enable multiple passes
- Mechanically adjustable fence for accurate, easy positioning
- Linear tracking system guides the work piece smoothly and directly under the cutter head, while keeping it flat
- Maximum cut is 6" wide by 6 1/2" thick
- Uses a standard 4" diameter, 2 knife corrugated back cutterhead (1 included)
- 7 1/2 HP 3-Phase Baldor Super E Motor
- 3 1/4 HP 5-Speed Porter Cable Router with 1/2" shank (included)
- Option available for an 8" spindle and cutterhead
- Worktable Size:38" x 23"
- Arbor 1 1/4" Diameter, 6" Long
- Spindle 6000 RPM (reversible)
- Feed Rate 0 to 30 Feet Per Minute(forward and reverse)
- Thickness 7" max.
- Router Unit System mounts a standard 7518 Porter Cable Router (included)
