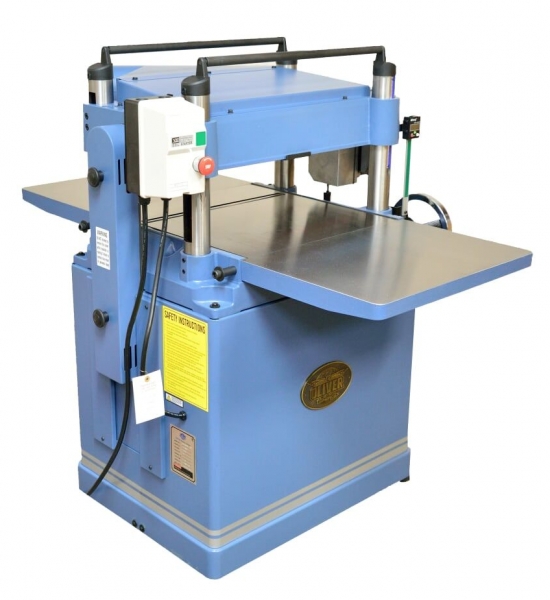

Oliver Model 4430.201 20" Planer with Helical Cutterhead 5HP 1Ph

Machine Available
Stock #51700N
New
   CALL FOR PRICE

  • Oliver Model 4430.201 20" Planer with Helical Cutterhead 5HP 1Ph
  • Unique design allows motor and cutter head to move in unison
  • Auto-depth lock features twin nitrogen cylinders virtually eliminates snipping
  • Helical cutter head with German-made carbide inserts
  • 4-sided cutting inserts are indexed and easy to replace
  • Heavy cast iron construction including extension wings
  • Table is precision ground for smooth stock feeding
  • Table is fixed allowing easy use of auxilary stock support
  • Digital read out allows precise thickness settings
  • Large hand wheel and support struts allow easy height adjustment
  • Four-post design ensures head alignment regardless of stock thickness
  • Top mounted roller for easy multiple passes
  • Two-speed feed gearbox for better cuts
  • Oil bath gear lubrication for years of performance
  • Built-in mobile base allows easy movement in the shop
  • Magnetic switch for added protection and safety
  • Maximum Stock Width 20"
  • Maximum Depth of Cut 1/8"
  • Maximum Stock Thickness 8"
  • Minimum Stock Thickness 1/4"
  • Minimum Stock Length 7"
  • Dust Port Diameter 5"
  • Feed Speeds 16/20 FPM
  • Adjustable Bed Rollers 1
  • Table Size (L x W) 20" x 21"
  • Table Size With Extension Wings (L x W) 20" x 51"
  • Cutterhead Diameter 3-1/4"
  • Cutterhead Speed 5,000 RPM
  • Motor 5HP 1Ph, 230V Only
