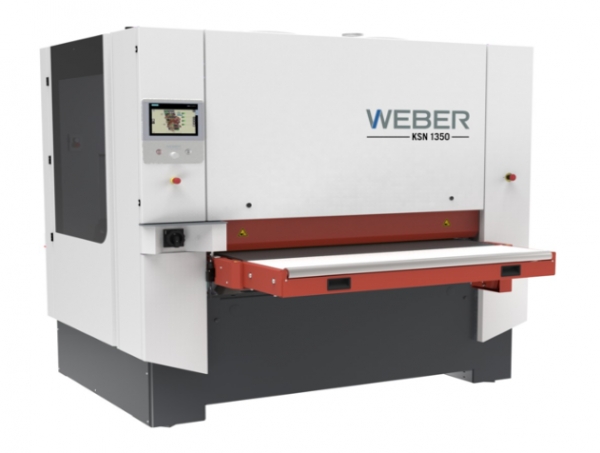

Weber Model KSN-2-1350 53" 2 Head Wide Belt Sander

Machine Available
Stock #701900N
New
   CALL FOR PRICE

  • Weber Model KSN-2-1350 53" 2 Head Wide Belt Sander
  • Two sanding belts for calibrating, veneer and lacquer sanding with constant pass-line 900 mm
  • Operating width 1350 mm
  • Drive sanding heads 1+2 (frequency controlled) 24,0 kW
  • Drive feed 1,3 kW
  • Drive height adjustment 1,0 kW
  • Drive vacuum 1,5 kW
  • Sanding belt speed approx. 2-18 m/s
  • Sanding belt dimensions (W x L): 1370 x 2150 mm
  • Panel thickness (min./max.): 4-200 mm
  • Pass-line (variable) 900 mm
  • Feed speed 2-12 m/min
  • Compressed air requirement 5,5 bar
  • Connection compressed air R1/2”
  • Operating voltage 3 x 460 Volt/N/PE 60 cps
