Northtech Model NT 400XL Heavy Duty Chain Drive Series Double Surface Planer
Machine Available
Stock #52800N

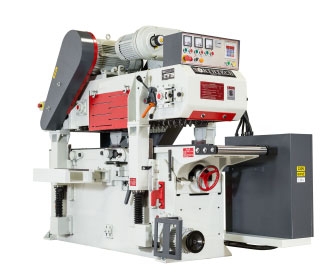

New- Northtech Model NT 400XL Heavy Duty Chain Drive Series Double Surface Planer
- CUTTERHEADS
- 20HP Top, 15HP Bottom
- Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts
- 5100RPM solid steel cutterheads with Class 7 NSK bearings
- Cutterhead dimensions: 5” x 16”
- PRODUCT DIMENSIONS
- Working thickness 10 - 155mm (3/8” - 6-1/2”)
- 16” min working length
- 400mm (16”) maximum width
- FEED SYSTEM
- 2HP feed motor

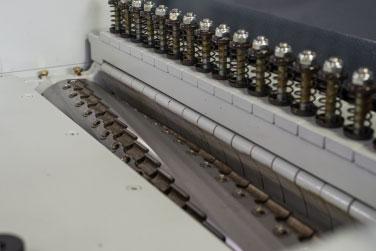

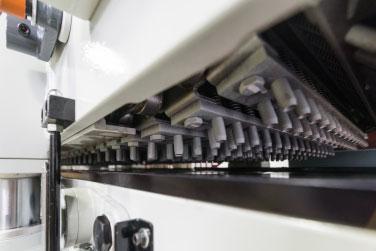

- Carpet feeding spike system with 700 spikes
- Feed speed 25-85 FPM
- FEATURES
- 1HP elevation motor
- Mechanical variable speed
- Digital control panel with 3 amp meters

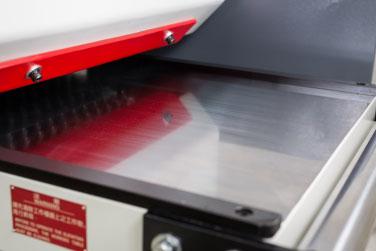

- Chrome bed plate .01mm thick
- Amperage requirement: 230V/81.2 AMPS, 460V/40.5 AMPS
- (2) 6” dust ports requiring 981 CFM @ each point of extraction
- Passline: 32”
- Lubricating system included
- UL/CE Certified electrical components
- Includes operator’s manual and parts book
- 460 volt 3PH option available for an additional cost
- 8" opening option available for an additional cost
