Northtech Model NT-610XL Double Surface Planer
Machine Available
Stock #521000N

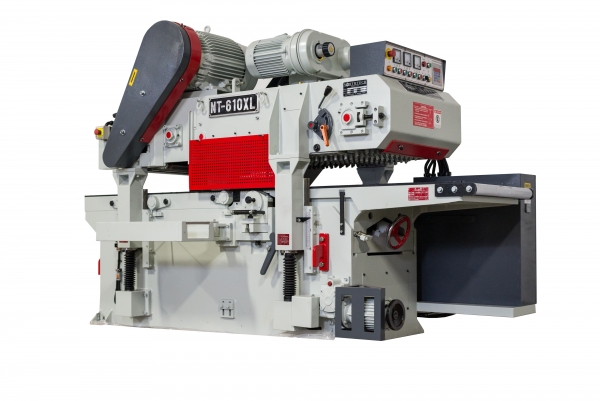

New- Northtech Model NT-610XL Double Surface Planer
- CUTTERHEADS

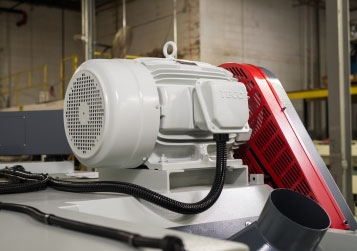

- 30HP Top, 25HP Bottom

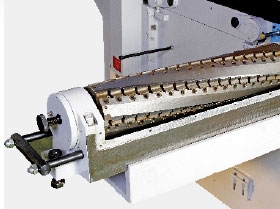

- Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts
- 5000RPM solid steel cutterheads with Class 7 NSK bearings
- Cutterhead decibel rating of 75db or less
- PRODUCT DIMENSIONS
- Working thickness 10 - 155mm (3/8" - 6")
- 15" min working length
- 24" maximum width

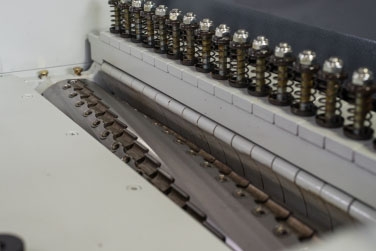

- FEED SYSTEM
- 5HP feed motor

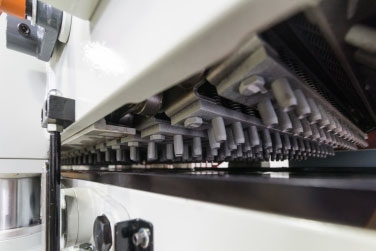

- Carpet feeding spike system with 1100 spikes
- Feed speed 25 - 95 fpm
- FEATURES

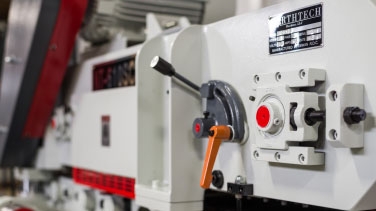

- Mechanical variable speed

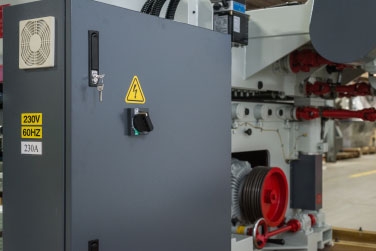

- Digital control panel with 3 amp meters

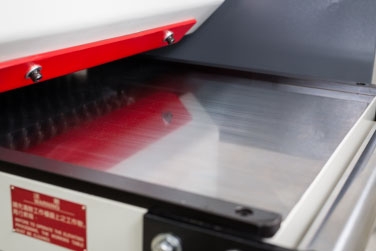

- Chrome bed plate .01mm (.004") thick
- Amperage requirement: 230V @ 200AMP, 460V @ 100AMP
- (2) 6" dust ports requiring 1000 CFM @ each point of extraction
- Automatic lubricating system with low level shut off
- UL/CE Certified electrical components
- Includes operator's manual and parts book
- 460 volt 3PH option available for an additional cost
- 8" opening option available for an additional cost
