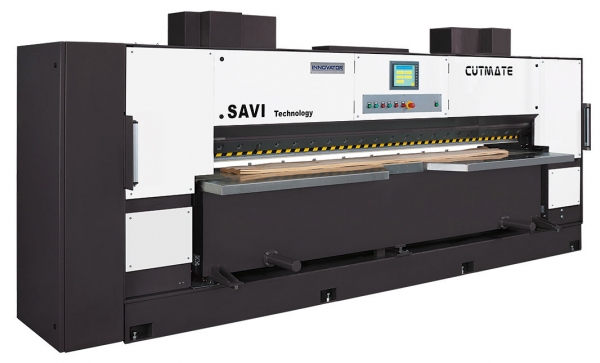

Northtech CutMate 4000 Single Knife Veneer Guillotine

• Cutting Length : 4000 mm (157")
• Maximum Opening : 120 mm (4.7")
• Cutting width: 25 ~ 650mm (.98" - 25.6")
• Pack Beam Width: 150mm (5.9")
• Electric Power: Approx. 7.5kw
• 60 mm knife cylinder
• Green cutting indicator
• European safety standards
• Yuken hydraulic system
• Mitsubishi PLC control system
• Rigid welded machine body for stable movement
• Safety light curtains ensure operator is out of danger zone while cutting
• Magnetic scale for accurate linear position of the fence
• Adjustable pressure of hydraulic knife and pack beam for all kinds of veneers
• "Safety locker” at the front end of the knife beam is unique and only on Innovator's guillotines
• Special designed pressure release valve on knife to minimize operational danger caused by mechanical faults
• Extra safety valve on the knife beam with additional safety knife protective cylinder to prevent any unexpected drop of knife
• Two-handed cycle start of the knife and pack beam requires operator to hold buttons through entire cycle
• 480V or 230V to be specified at time of order
• Second cut technology option available at an additional cost
