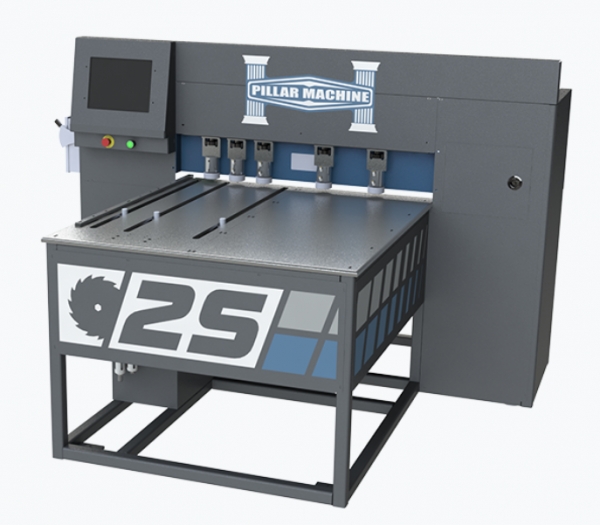

Pillar Model 2S Horizontal CNC

• Pillar Model 2S Horizontal CNC
• The 2S is a multi-axis, mulit-functional CNC horizontal machine. It is designed to size and square edge glued panels safely and accurately. The 2S can also be Pillar-Linked to any order entry program to scan barcodes. This will virtually eliminate the need for the operator to do anything other than load the part to be cut.
• Standard Features
• 42” x 42” x 1” aluminum table
• 15” Color Touch Screen
• 5 clamping units
• Drop down side reference fence
• Programmable pop-up pins for front edge referencing
• 5 HP Direct Drive Spindle
• 10” Saw Blade
• Air 90 - 110 psi
• One 4" dust collection port
• 350 CFM
• Options
• Waste Chute
• Additional Part Clamping
• Barcode Reader
• Larger table / work piece capablilites
• Additional Guarding
• Larger Spindle
• Air Floating Table
• CNC controlled back-stop for master panels
• Tooling included
