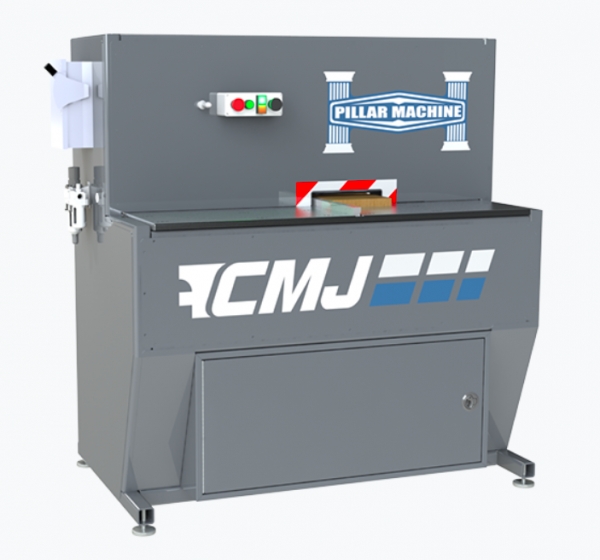

Pillar Model CMJ Coping/Tenoning

• Pillar Model CMJ Coping/Tenoning
• Designed for chip free coping or tenoning of either square or profiled parts without the need for a back-up piece or chip breaker
• In an 8-second-cycle it can process either two top/bottom rails or one mid rail that is pre-profiled
• Simple to operate
• It is a PLC driven machine
• 2 counter rotating vertical spindles. The first spindle clears the leading edge of the rail while the other spindle moves in and processes the remainder of the part’s width
• This version of the CMJ has stacked tooling that allows you to switch between two inside profiles with the flip of a switch
• Provides a clean, tear-out free, end coped/tenoned part every time
• Standard Features
• 8” part width capacity
• 2 each stacked tool per spindle
• Counter rotating spindles
• Scissor lock clamp
• Auto Feed Carriage
• 5 HP Motor
• 5/8” max cut depth
• 5” max cutter head diameter
• 3” minimum part length
• 10 second cycle
• Material thickness: 5/8” to 1”
• Two 4" dust ports
• 700 CFM required
• Options
• 12” part width capacity
• Tigerstop integration
• Z axis control
• Increased thickness for passage doors
