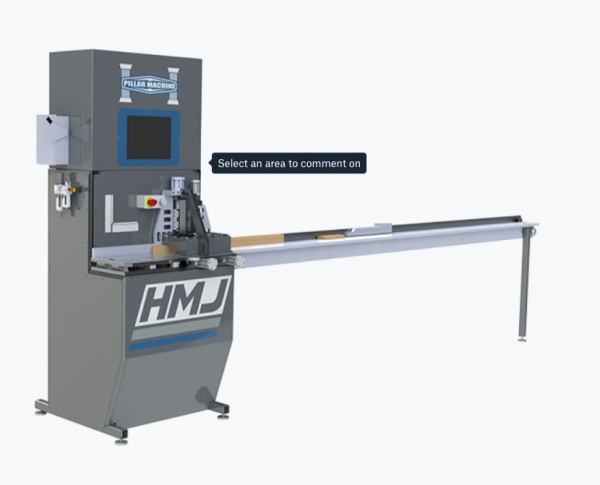

Pillar Model HMJ Haunching Machine

• Pillar Model HMJ Haunching Machine
• The HMJ is a CNC machining center used for producing high quality Haunch Joints which are used in many furniture and cabinetry applications
• The haunch head miters the profile for beaded face frame applications on both stiles and rails
• Standard Features CNC controlled X-Axis
• 5 HP Haunch Spindle
• Servo Fence: Belt Driven, Servo Control
• Double Stack Two Stiles at a time
• Square Rail Bearings
• Unlimited Program Storage
• Board Straightening Clamps
• Tooling Included
• Dust Ports 4” (1x)
• CFM 350
• Specifications Material Width: 1 1/4” to 6”
• Thickness: Up to 2”
• Stile Width: 3/4” to Unlimited
• Stile Length: 120” Max
• Haunch Depth: 1/16” to 1/2”
