Pillar Model HPJ Horizontal/Vertical Bore and Dowel Machine
Machine Available
Stock #22300N

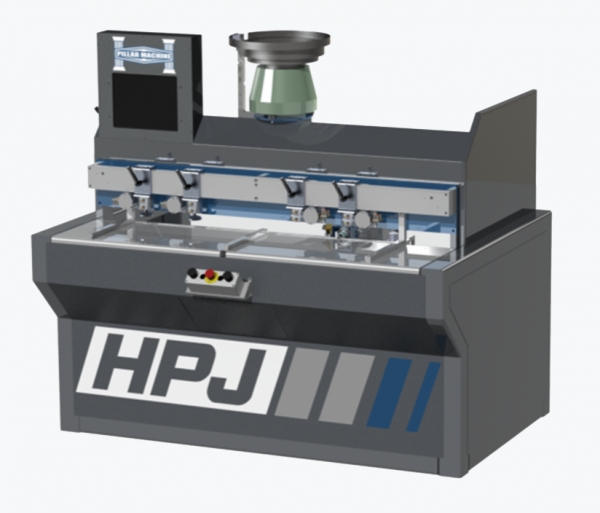

New- Pillar Model HPJ Horizontal/Vertical Bore and Dowel Machine
- The HPJ machine is a horizontal and vertical point to point bore and dowel insertion machine center used for case construction in cabinet or furniture manufacturin
- With the HPJ, you get quick and accurate assembly, gaining production times on CNC routers and point to points by shifting horizontal boring to the HPJ
- It is designed toCNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water, then insert a dowel into the hole
- While one part is being machined, the other3 zones can be loaded and queued for machining
- All of this is done during a cycle time of less than one second
- The HPJ has a 49” working table with 4 work zones
- Standard Features
- CNC controlled X-Axis
- Digital Readout for Z-Axis
- 3 HP 18,000 RPM Direct Drive Spindle
- 49” Work Area with 4 work zones
- 15” Color Touch Screen
- 8mm Dowel Inserter
- Sealed Glue System
- 18” Dowel Bowl
- One 3" dust port
- 350CFM
- Options
- 96” Work Area
- Barecode Reader
- Dowel Diameter from 6mm to 5/8”
- Dowel Length from 30mm to 5”
- Extra Spindles
- Single Axis Routing
- Servo Controlled Z and Y Axis
- Laser Part Measuring
