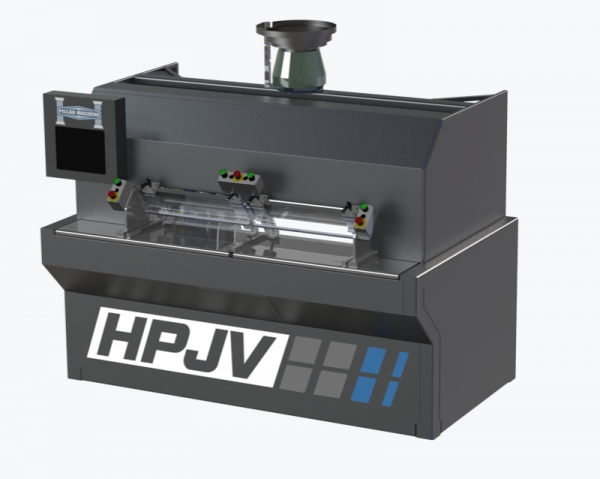

Pillar Model HPJV Horizontal/Vertical Bore and Dowel

• Pillar Model HPJV Horizontal/Vertical Bore and Dowel
• The HPJV machine is a horizontal and vertical point to point bore and dowel insertion machine center used for case construction in cabinet or furniture manufacturing
• The HPJV has separate independent horizontal and vertical spindles allowing machining in both positions to happen in one operation
• This lends itself to drawer box construction as well as MiniFix or Cam Lock hardware
• With the HPJV, you get quick and accurate assembly, gaining production times on CNC routers and point to points by shifting horizontal boring to the HPJ
• It is designed to CNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water, then insert a dowel into the hole
• While one part is being machined, the other 3 zones can be loaded and queued for machining
• All of this is done during a cycle time of less than one second
• The HPJV has a 49” working table with 4 work zones
• Standard Features
• CNC controlled X-Axis
• 3 HP Direct Drive Horizontal Spindle
• 3 HP Direct Drive Vertical Spindle
• 49” Work Are with 4 Work Zones
• Sealed Glue System
• 15” Color Touchscreen
• 8mm Dowel Inserter
• 18” Dowel Bowl
• One 3" dust port
• 350CFM
• Options
• 96” Work Area
• Barecode Reader
• Dowel Diameter from 6mm to 5/8”
• Dowel Length from 30mm to 5”
• Slot Mortising
• Servo Controlled Z and Y Axis
