Pillar Model M45 Mortise and Tenon Miter Machine
Machine Available
Stock #45600N

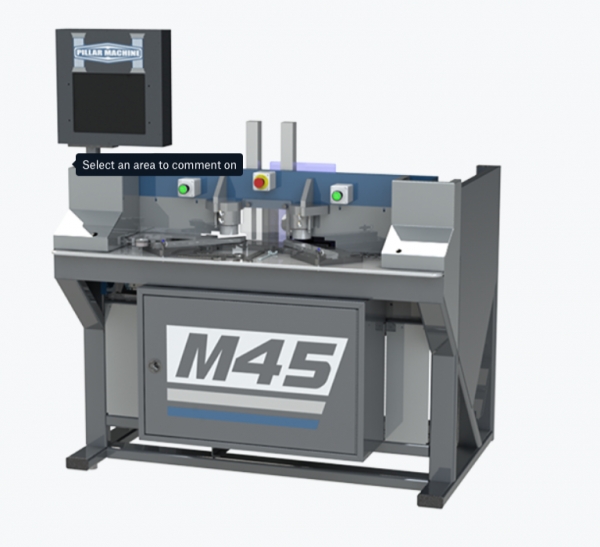

New- Pillar Model M45 Mortise and Tenon Miter Machine
- The M45 is our smallest machine designed for creating Blind Mortise, and Tenon joints on a Mitered angle
- It is a full 2 axis CNC machine
- The table top is V-shaped to allow machining of two parts at one time
- Referencing is done on both the outside and face of the profile for accurate joints
- The computer controls the size of the mortise and tenon
- Programs are stored and recalled as needed
- Changing from program to program is accomplished in seconds
- Small runs as well as large batches may be done on this machine
- This machine produces between 150-175 doors per 8 hour shift with one operator
- Standard Features
- 7.5 HP Miter and Tenon Spindle
- 3 HP Mortise Spindle
- Z axis Rotary Ballscrew
- Two Working Zones
- Square Rail Bearings
- Multi-Axis Controller
- Unlimited Program Storage
- Side Pressure Clamps
- Material Width: 1 1/ 2” - 3 1/2”
- Material Thickness: Up to 1”
- 150- 175 Doors Per 8hr Shift
- Dust ports two 4"
- 700 CFM
- Options
- 72” Servo Fence
- Increased Thickness / Width
- Diamond Tooling
