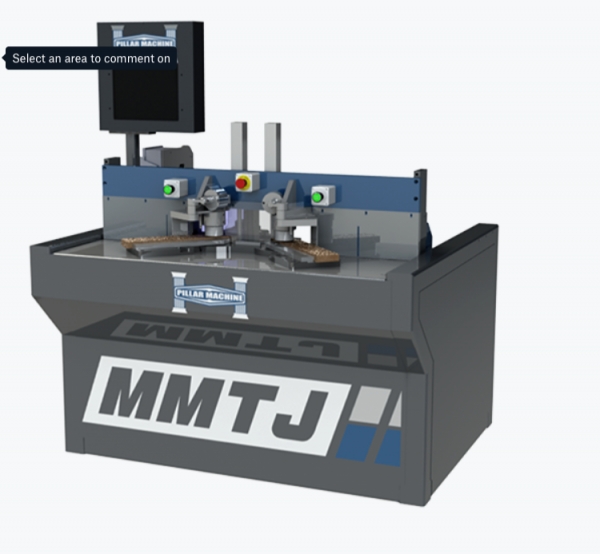

Pillar Model MMTJ Mortise and Tenon Miter Machine

• Pillar Model MMTJ Mortise and Tenon Miter Machine
• The MMTJ is our most popular machine designed for creating Blind Mortise, and Tenon joints on a Mitered angle
• It is a full 3 axis CNC machine
• The table top is V-shaped to allow machining of two parts at one time
• Referencing is done on both the outside and face of the profile for accurate joints
• The computer controls the size of the mortise and tenon
• Programs are stored and recalled as needed
• Changing from program to program is accomplished in seconds
• Small runs as well as large batches may be done on this machine
• This machine produces between 175-200 doors per 8 hour shift with one operator
• Standard Features
• 7.5 HP Miter and Tenon Spindle
• 3 HP Mortise Spindle
• Z & Y Axis CNC Rotary Ball Screw
• Square Rail Bearings
• Unlimited Program Storage
• 2 Working Zones
• 120-200 per shift
• Side Pressure Clamps
• Material Width: 1 1/ 2” - 3 1/2”
• Material Thickness: 5/8” to 1”
• 175-200 Doors Per 8 hr Shift
• CFM 700
• Two 4" dust pots
• Options
• 72” Servo Fence
• Increased Thickness / Width
• Diamond Tooling
