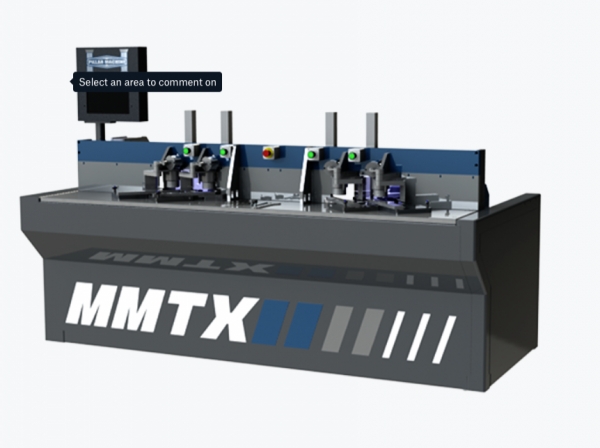

Pillar Model MMTX Mortise and Tenon Miter Machine

• Pillar Model MMTX Mortise and Tenon Miter Machine
• The MMTX is the industry’s highest producing machine designed for creating Blind Mortise, and Tenon joints on a Mitered angle
• It is a full 6 axis CNC machine
• It is much like our MMTJ and M45 machines with exception that it has one dedicated carriage to produce the tenon end and another dedicated carriage to produce the mortise side
• Each side of the machine has two loading stations
• Referencing is done on both the outside and face of the profile for accurate joints
• The computer controls the size of the mortise and tenon
• Programs are stored and recalled as needed
• Changing from program to program is accomplished in seconds
• Small runs as well as large batches may be done on this machine
• This machine produces between 400-500 doors per 8-hour shift with one operator
• Standard Features
• 7.5 HP Tenon Spindle
• 7.5 HP Miter Spindle
• 3 HP Mortise Spindle
• Z & Y Axis Rotary Ball Screw
• Four Working Zones
• Square Rail Bearings
• Unlimited Program Storage
• Side Pressure Clamps
• Material Width: 1 1/ 2” - 3 1/2”
• Material Thickness: Up to 1”
• 400-500 Doors Per 8 Hr Shift
• Two 4" dust ports and two 6" dust ports
• CFM 1400
• Options
• 72” Servo Fence
• Increased Thickness / Width Diamond Tooling
