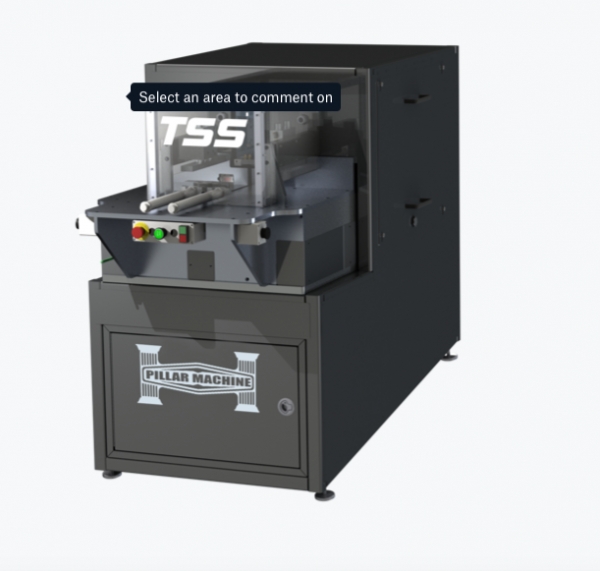

Pillar Model TSS Trim Score Saw

• Pillar Model TSS Trim Score Saw
• The TSS machine was designed to cut materials that are susceptible to tear out as well as for pack cutting of multiple parts at the same time
• The saw is equipped with two counter rotating saws mounted above and below one another
• The bottom saw is designed for pre-scoring parts prior to cut off to prevent tear out
• The bottom spindle is designed to accept a 6′′ diameter scoring saw and is powered by a 1 1/2 HP motor
• Spindle speed is 4700 RPM
• The top spindle is designed for a 12′′ diameter saw blade and is powered by a 3 HP motor with a spindle speed of 4700 RPM as well
• Saw blade travel is horizontal via linear bearings
• It is powered by a pneumatic cylinder with adjustable flow controls
• For Safety, horizontally mounted pneumatic work clamps are installed on each side of the cut-off saw and are equipped with a proximity switch to release only after full saw blade retraction
• Standard Features
• 2 Counter Rotating Saws
• Tear-Out Free Design
• Ability to Cut Multiple Parts At Once
• 2” x 12” Material Size
• Two 4" dust ports
• CFM 700
• Options
• Waste Chute
• Additional Part Clamping
• 10 Degree Table Tilt
• 2” X 24” Material Size
• Full Integration with TigerStop / RazorGage Systems
