Italpresse Model XL8 32-16 PABO Hydraulic Hot Press
Machine Available
Stock #12800N

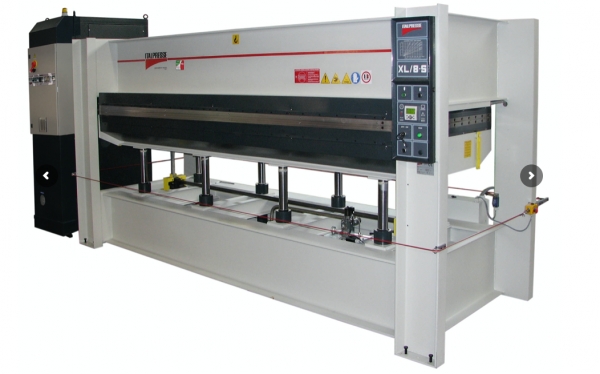

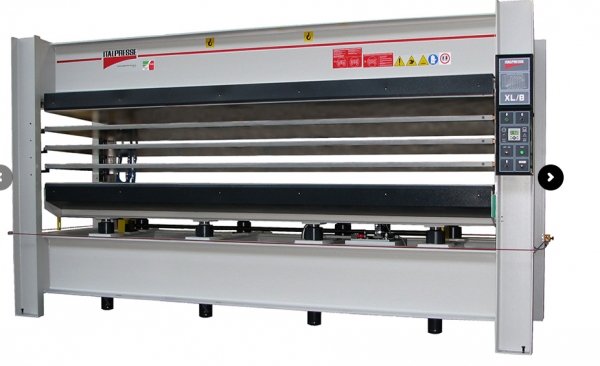

New- Italpresse Model XL8 32-16 PABO Hydraulic Hot Press
- Platen dimensions: 3,200 x 1,600 mm (126 x 63 in.)
- Number of daylights: 1
- Total cylinder stroke: 400 mm (15 ¾ in.)
- Number of pressing cylinders: 8
- Total thrust: 160 metric tons (176,000 lbs)
- Max. laminating pressure: 3.9 kg/cm2 (55 psi)
- Hydraulic pump: 3 kw (4 hp)
- Boiler power: 27 kw
- Maximum platen temperature: 120o C (248o F)
- Torsion free, heavy-duty press frame fabricated from welded structural steel
- Engineered steel platens heated by circulation of thermal oil – Fast Heat-up Time!
- Platens covered with easy to replace, glue resistant Mylar film
- Self-lubricating corner guides and rack and pinion system to maintain parallelism of the press platens during opening and closing
- Automatic regeneration of pressure during press cycle
- Electrical resistance thermal oil boiler, complete with circulation pump, expansion tank, thermostatic controls, and automatic startup timer
- TS-400 color graphic touch screen controller with the following features:
- Memory for 200 programs containing different panel dimensions, laminating pressures, cycle times, and platen temperatures
- Automatic calculation of the hydraulic pressure based on programmed panel dimensions
- Automatic exclusion of one or two pairs of press cylinders based on programmed panel dimensions
- Digital temperature control of the platen temperature
- Digital pressing timer with automatic initiation of press opening and panel unloading
- 7-day auto startup and shut down timer for the thermal oil boiler
- PLC I/O status monitoring for troubleshooting
- Display of fault and warning messages
- EFC System - sensors to detect deflection of the lower platen and stop the buildup of pressure in case of improper positioning of the panels
- Dual cycle-start buttons requiring two hands to initiate cycle for safety
- Safety pull rope on all four sides with emergency stop switch
- Safety locking plates to secure the mobile lower platen while performing maintenance on the hydraulic system
- UL approved electrical components
