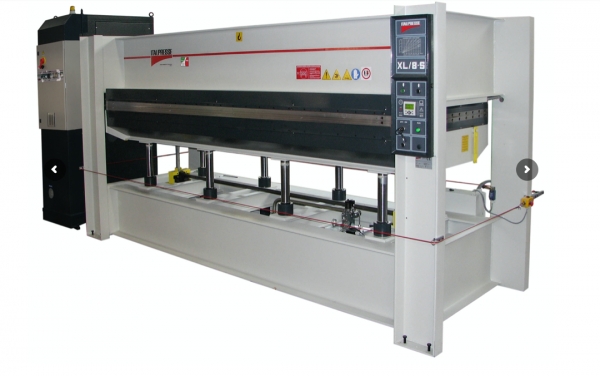

Italpresse Model XL8 32-16 PMBO Hydraulic Hot Press

• Italpresse Model XL8 32-16 PMBO Hydraulic Hot Press
• Platen dimensions
• 3,200 x 1,600 mm (126 x 63 in.)
• Number of daylights: 1
• Total cylinder stroke: 400 mm (15 ¾ in.)
• Number of pressing cylinders: 8
• Total thrust: 160 metric tons: (352,739 lbs)
• Max. laminating pressure: 3.9 kg/cm2 (55 psi)
• Hydraulic pump: 3 kw (4 hp)
• Boiler power: 36 kw
• Maximum platen temperature: 120o C (248o F)
• Torsion free, heavy-duty press frame fabricated from welded structural steel
• Massive, solid steel platens drilled for circulation of thermal oil – superior heat characteristics
• Platens covered with easy to replace, glue resistant Mylar film
• Self-lubricating corner guides and rack and pinion system to maintain parallelism of the press platens during opening and closing
• Automatic regeneration of pressure during press cycle
• Electrical resistance thermal oil boiler, complete with circulation pump, expansion tank, thermostatic controls, and automatic startup timer
• TS-400 color graphic touch screen controller with the following features:
• Memory for 200 programs containing different panel dimensions, laminating pressures, cycle times, and platen temperatures
• Automatic calculation of the hydraulic pressure based on programmed panel dimensions
• Automatic exclusion of one or two pairs of press cylinders based on programmed panel dimensions
• Digital temperature control of the platen temperature
• Digital pressing timer with automatic initiation of press opening and panel unloading
• 7-day auto startup and shut down timer for the thermal oil boiler
• PLC I/O status monitoring for troubleshooting
• Display of fault and warning messages
• EFC System - sensors to detect deflection of the lower platen and stop the buildup of pressure in case of improper positioning of the panels
• Dual cycle-start buttons requiring two hands to initiate cycle for safety
• Safety pull rope on all four sides with emergency stop switch
• Safety locking plates to secure the mobile lower platen while performing maintenance on the hydraulic system
• UL approved electrical components
