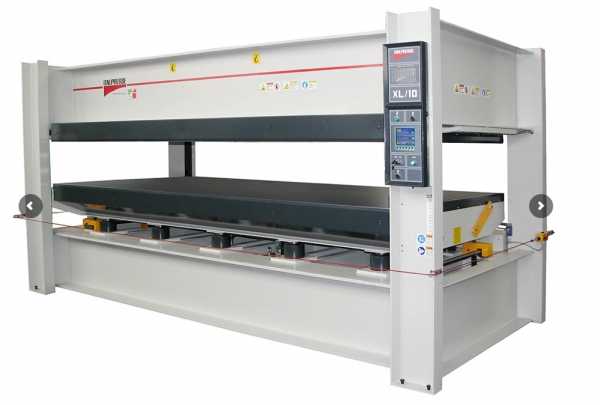

Italpresse Model XL/10 38-16 PMBO Hydraulic Hot Press

Machine Available
Stock #12910N
New
   CALL FOR PRICE

  • Italpresse Model XL/10 38-16 PMBO Hydraulic Hot Press
  • Platen dimensions: 3,800 x 1,600 mm (149 x 63 in.)
  • Number of daylights: 1
  • Total cylinder stroke: 400 mm (15 ¾ in.)
  • Number of pressing cylinders: 10
  • Diameter of pressing cylinders: 85mm each
  • Total thrust: 190 metric tons (418,878 lbs)
  • Max. laminating pressure on 80% of platen area 4.17 kg/cm2 (60 psi)
  • Max. laminating pressure on 100% of platen area: 3.34kg/cm2 (48 psi)
  • Hydraulic pump: 3 kw (4 hp)
  • Boiler power: 36 kw
  • Maximum platen temperature: 120o C (248o F)
  • Torsion free, heavy-duty press frame fabricated from welded structural steel
  • Massive, solid steel platens drilled for circulation of thermal oil – superior heat characteristics!
  • Platens covered with easy to replace, glue resistant Mylar film Self-lubricating corner guides and rack and pinion system to maintain parallelism of the press platens during opening and closing
  • Automatic regeneration of pressure during press cycle
  • Electrical resistance thermal oil boiler, complete with circulation pump, expansion tank, thermostatic controls, and automatic startup timer
  • TS-400 color graphic touch screen controller with the following features:
  • Memory for 200 programs containing different panel dimensions, laminating pressures, cycle times, and platen temperatures Automatic calculation of the hydraulic pressure based on programmed panel dimensions
  • Automatic exclusion of one or two pairs of press cylinders based on programmed panel dimensions
  • Digital temperature control of the platen temperature
  • Digital pressing timer with automatic initiation of press opening and panel unloading
  • 7-day auto startup and shut down timer for the thermal oil boiler PLC I/O status monitoring for troubleshooting
  • Display of fault and warning messages
  • EFC System - sensors to detect deflection of the lower platen and stop the buildup of pressure in case of improper positioning of the panels
  • Dual cycle-start buttons requiring two hands to initiate cycle for safety
  • Safety pull rope on all four sides with emergency stop switch
  • Safety locking plates to secure the mobile lower platen while performing maintenance on the hydraulic system
  • UL approved electrical components
