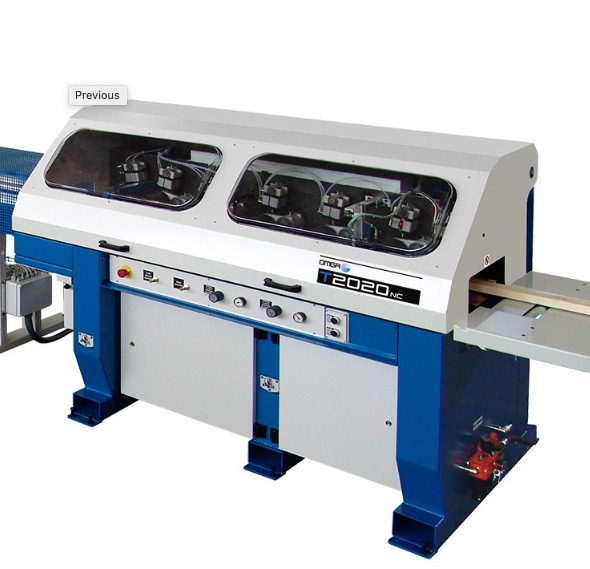

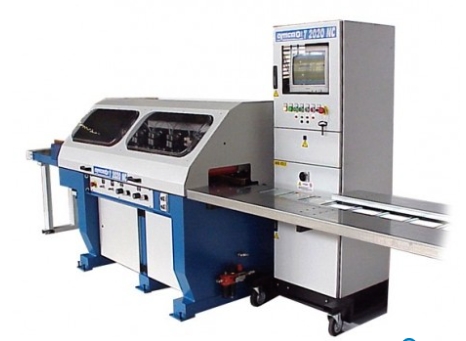

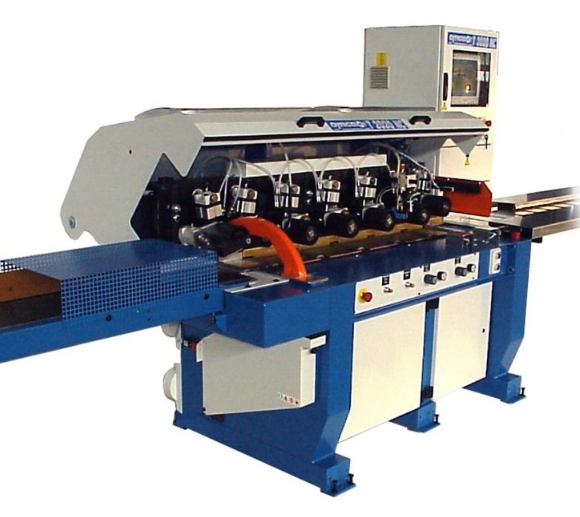

Omga Model T 2020 NC

• Omga Model T 2020 NC
• Data Sheet
• Max. Piece Thickness: 4 3/4"
• Max. Piece Width: 12 5/8"
• Max. Indeed Length: 23 5/8"
• Max. Feed Speed: 800 FPM
• Saw Blade Motor Power: 7.5HP
• Feed Motor Power: 10 HP (7.5kw)
• Max. Acceleration: 50 feet/sec
• Cutting Speed: 0.2 -1 sec
• Average Number of cuts: 80-90min
• General Specifications
• Automatic cut off saw for defecting and optimized cutting

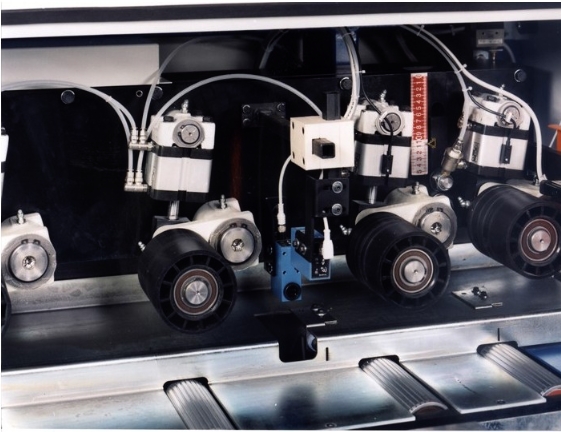

• Feeding by 7 corrugated rollers with a maximum speed of 180 m/min and a tolerance on the cut length of +/- 1 mm
• The set of 7 feeding rollers with corresponding top pressure rollers are able to compensate for dimensional variations of rough mill stock
• Pressure rollers, sitting on pneumatic cylinders, allow the feeding of boards with rough surface and sensible variations in thickness
• The control, with operating system Windows XP
• On request the cutting line can be completed with a width scanner, a second camera for handling up to 5 grades (3 grades with the only standard camera) an ink-jet printer and with various length sorting systems
• Suitable for high production requirements given its very high maximum feed speed of 240 m/min

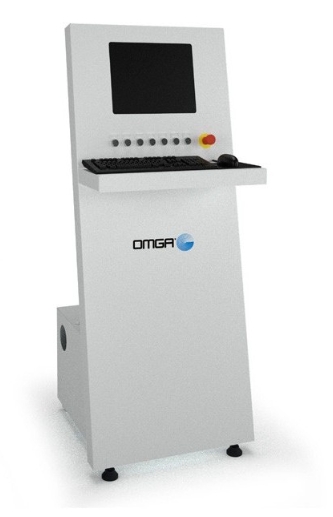

• Windows based PC
• Cutting lists can be input directly from the PC keypad, USB port, with direct serial connection to a remote PC or directly through the network
• Software complete with diagnostic and can also provide the following information:
• Stock, in cubic meters, required to produce the number of pieces in each list
• Number of pieces produced of each length
• Amount of stock in cubic meters divided into: first, second, third grade and waste
• Cubic meters required to produce remaining parts
• Yield as a percentage of the total
• The system can perform simulated cutting to test the result before processing the wood and allowing the user to decide about the parameter setting for the required production
• AVAILABLE OPTIONS:
• Infeed Roller Tables
• Width Scanner
• Two Sided Marking Stations
• 2nd horizontal reading Camera (for up to 5 grades)
• Single sided CNC Workpiece Sorter with kickers
• Motorized loading systems.
