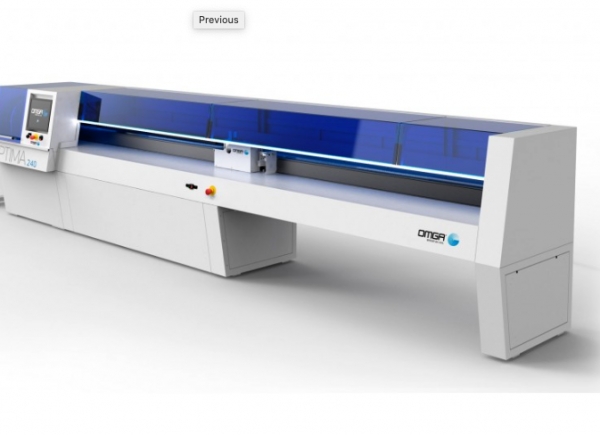

Omga Model OPTIMA 240

• Omga Model OPTIMA 240
• Data Sheet
• Max. Piece Thickness: 4" -2" (kc)
• Max. Piece Width: 12" - 7" (kc)
• Max. In feed Length: 13'9" -20'4"
• Max. Feed Speed: 800 FPM
• Saw Blade Motor Power: 7.5HP
• Saw Blade Diameter: 18"-14" (kc)
• Cutting Speed: 0.2-1 sec.
• Average Number of Cuts: 50 min - 55 min (kc)
• General Specifications
• Push-Feed Optimizing and Defecting Cut- Off Saw, for high speed production
• CNC, with Windows Embedded OS

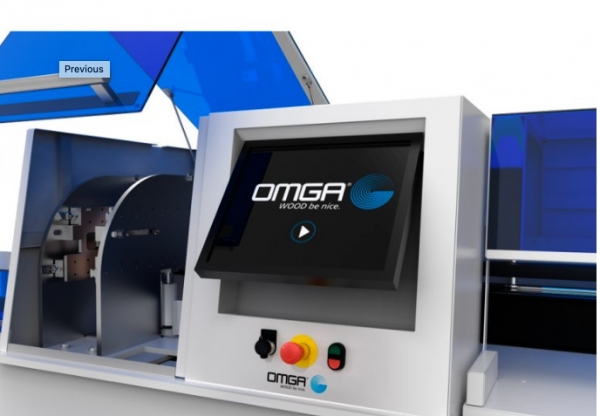

• Adjustable 19" Touch Screen display, combines reliability, ease of use and always maintains the ergonomic position of the operator
• RJ45 Ethernet port and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine

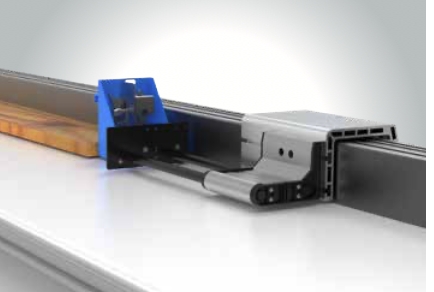

• Pusher system that rides on precision linear rails and bearings and, along with the pneumatic tail clamp and linear encoder, ensures very accurate positioning of the work piece (+/- 0.15 mm)
• Loading table to allow the operator to grade and prepare multiple boards which may be loaded in sequence

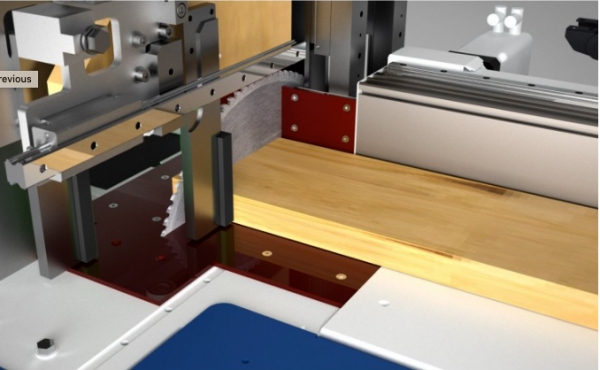

• "Intelligent" vertical and horizontal clamps, which automatically adapt to the dimension of the stock being processed, making the cutting cycle faster and ensuring the squareness of the cut pieces
• The optimization software features a wide variety of available cutting programs and combinations, which make this system very versatile and ready to respond to the different needs of the industry
• Available in 2 different configurations of maximum length of infeed boards, 4200 mm and 6200 mm
• Optional equipment
• Sorters with kickers
• Automatic loading systems

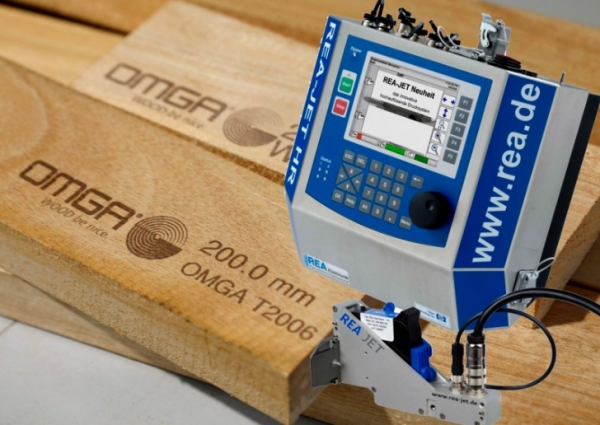

• In-line high resolution ink-jet printer width sensor as well as custom executions, based on the needs of our customers
