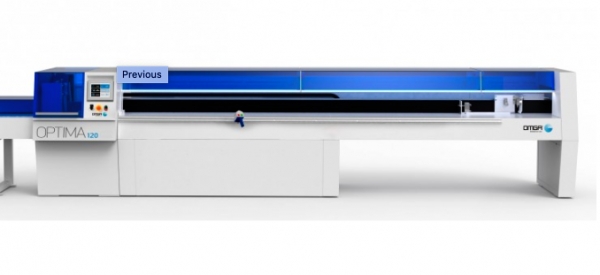

Omga Model OPTIMA 120

• Omga Model OPTIMA 120
• Data Sheet
• Max. Piece Thickness: 4" 5/16th
• Max. Piece Width: 12"
• Max. In feed Length: 13'9" -20'4"
• Max. Feed Speed: 400 FPM
• Saw Blade Motor Power: 6HP
• Saw Blade Diameter: 18" (20" optional)
• Cutting Speed: 0.4-1 sec
• Average Number of Cuts: 25 min - 35 min (kc)
• General Specifications
• Push-Feed Optimizing and Defecting Cut-Off

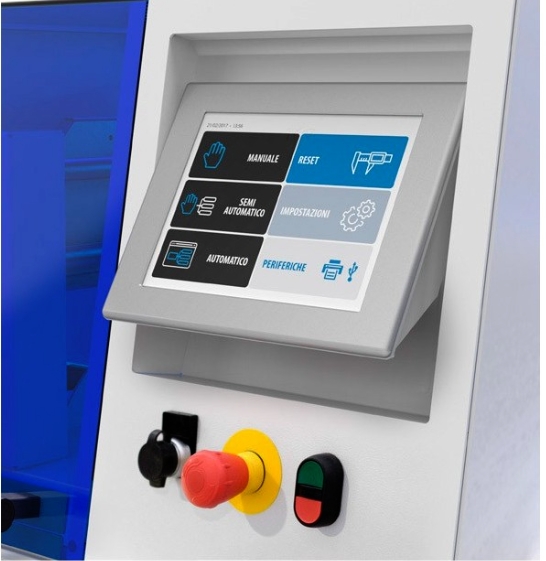

• Adjustable 10.4" Touch Screen display, combines reliability, ease of use and always maintains the ergonomic position of the operator

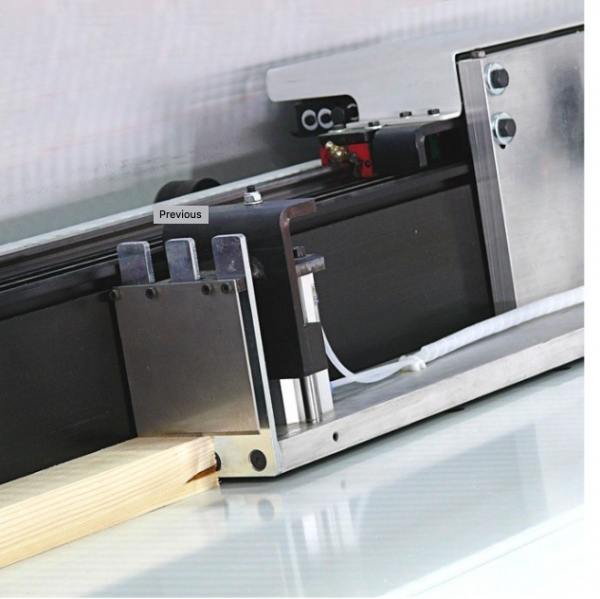

• Pusher system, rides on precision linear rails and bearings and, along with the pneumatic tail clamp and linear encoder, ensures very accurate positioning of the work piece (+/- 0.15 mm)
• Intelligent vertical and horizontal clamps, which automatically adapt to the dimension of the stock being processed, making the cutting cycle faster and ensuring the squareness of the cut pieces
• RJ45 Ethernet port and/or USB connection and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine
• Capable of optimization coupled with defecting capability
• Two Available Configurations
• SNC: Allows to process cutting jobs with step-down optimization of the different lengths present in the program or to process pre- determined cutting patterns. This configuration is ideal for batch- cutting. OPT: Capable of optimization coupled with defecting capability. The board is read through a laser guided system, which allows to select up to two separate grades and an absolute accuracy, even on finished parts, without leaving any trace.
