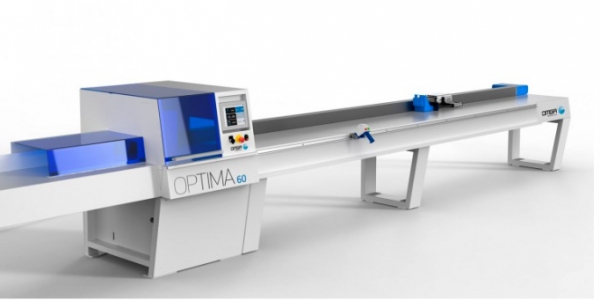

Omga Model OPTIMA 60

• Omga Model OPTIMA 60
• Data Sheet
• Max. Piece Thickness: 4" 5/16th
• Max. Piece Width: 12"
• Max. In feed Length: 13'9" -20'4"
• Max. Feed Speed: 200 FPM
• Saw Blade Motor Power: 6HP
• Saw Blade Diameter: 18" (20" optional)
• Cutting Speed: 0.5-1 sec
• Average Number of Cuts: 15 min - 20 min (kc)
• General Specifications
• Fitted with the last generation CNC

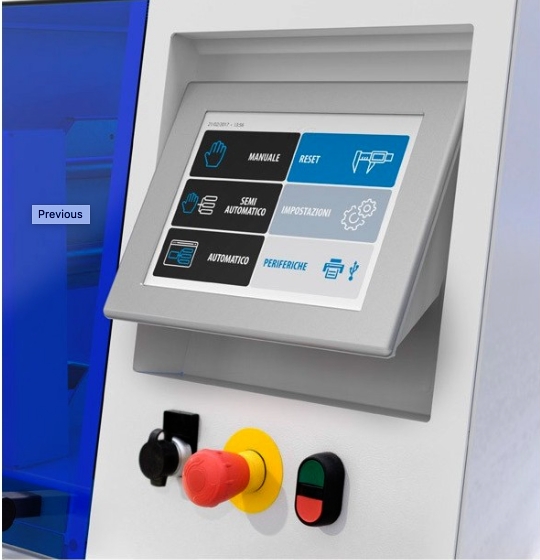

• Adjustable 10.4" Touch Screen display, combines reliability, ease of use and always maintains the ergonomic position of the operator which ensure very accurate positioning of the work piece (+/- 0.15 mm)
• RJ45 Ethernet port and/or USB connection and the software allows for reports on the ongoing production runs, to always be available on screen or through the network, without interrupting the process of the machine
• Capable of optimization coupled with defecting function
• Two different configurations:
• SNC: Allows to process cutting jobs with step-down optimization of the different lengths present in the program or to process pre-determined cutting patterns. This configuration is ideal for batch-cutting
• OPT:
• Capable of optimization coupled with defecting function. The board is read through a laser guided system, which allows to select up to two separate grades and an absolute accuracy, even on finished parts, without leaving any trace
• Optional
• The cutting area may be fitted with a system of horizontal clamps, ensuring the squareness of the cut pieces

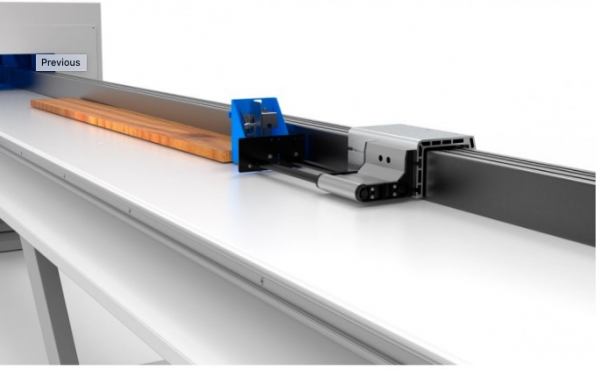

• The pusher system may be fitted with a pneumatic tail clamp and linear encoder
