Omga Model TR 2B NC

• Omga Model TR 2B NC
• Data Sheet:
• Max Distance Between Saws: 9'2" Min. Distance Between Saws: 13' 3/16"
• Min. Distance Between Saws 45 deg: 18' 1/8" or 9 7/16" (+opt. +alt)
• Cross Cut Capacity 90 deg: 6 1/2"
• Cross Cut Capacity 45 deg: 4 1/2"
• Max. Depth of Cut: 4 1/4"
• Motor Power: 2 x 3HP
• Saw Blade Bore: 1"
• Saw Blade Diameter: 14"
• Arbor Speed: 3200
• Dust Port: 2 x 3 1/8"
• General Information:

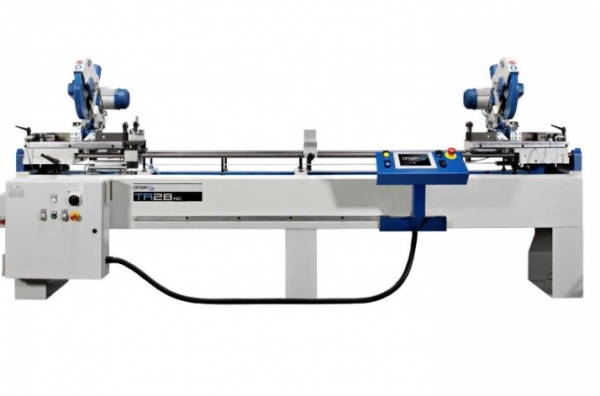

• Equipped with two heads one fixed on the left and one movable on the right with automatic traverse

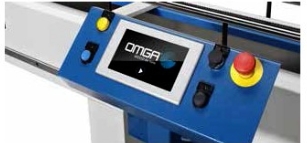

• 7" Touch-Screen display NC
• Each head having positive mitering stops at +45,-45 and 90 degrees
• Controlled by an electro-pneumatic system which enables the operator to select between three automatic working cycles:
• 1) Simultaneous cycling of both blades
• 2) Alternate cycle allowing the machine to cut very short pieces at 45 degrees
• 3) Single head cycling

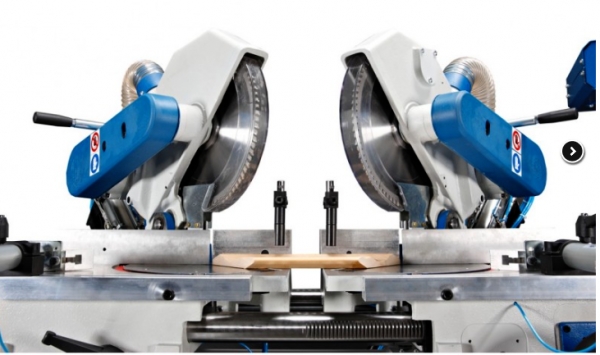

• Two standard pneumatic vertical clamps ensure the perfect stability of the workpiece
• Overload protection on each of the two main motors
• Options: Vertical or horizontal pneumatic clamps
• Extended cutting length 11' 4", 14' 7" and 18' available
• Brackets for short pieces
• Air over oil descent of the heads
• Spray mist system
