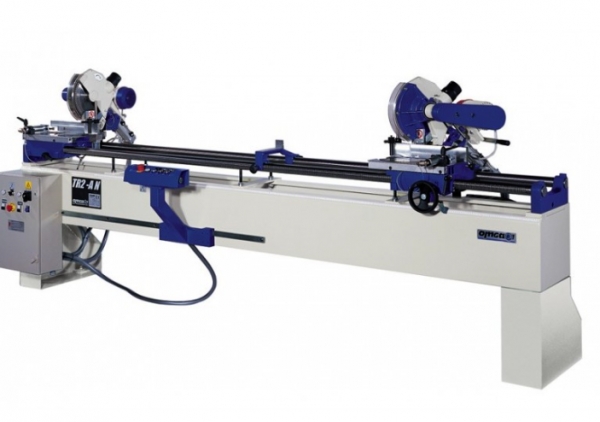

Omga Model TR 2A

• Omga Model TR 2A
• Data Sheet:
• Max Distance Between Saws: 9' 2"
• Min. Distance Between Saws: 8' 3/4"
• Min. Distance Between Saws 45 deg: 15' 1/8" or 6' 11/16" (+opt. +alt)
• Cross Cut Capacity 90 deg: 5' 1/2"
• Cross Cut Capacity 45 deg: 4'
• Max. Depth of Cut: 3' 1/2"
• Motor Power: 2 x 3HP
• Saw Blade Bore: 1"
• Saw Blade Diameter: 12"
• Arbor Speed: 3200
• Dust Port: 2 x 3 1/8"
• General Information:
• 12" Double Mitre Saw is equipped with one fixed and movable head
• Positive mitering stops at +45,-45 and 90 degrees
• Controlled by an electro-pneumatic system which enables the operator to select between three automatic working cycles:
• 1) Simultaneous cycling of both blades
• 2)Alternate cycle allowing the machine to cut very short pieces at 45 degrees
• 3) Single head cycling
• Two standard pneumatic vertical clamps ensure the perfect stability of the work piece
• Standard overload protection on each of the two main motors
• Options:
• Vertical or horizontal pneumatic clamps
• extended cutting lengths to 11'4", 14' 7" and 18' available
• Brackets for short pieces
• Air over oil descent of the heads
• Spray mist system
