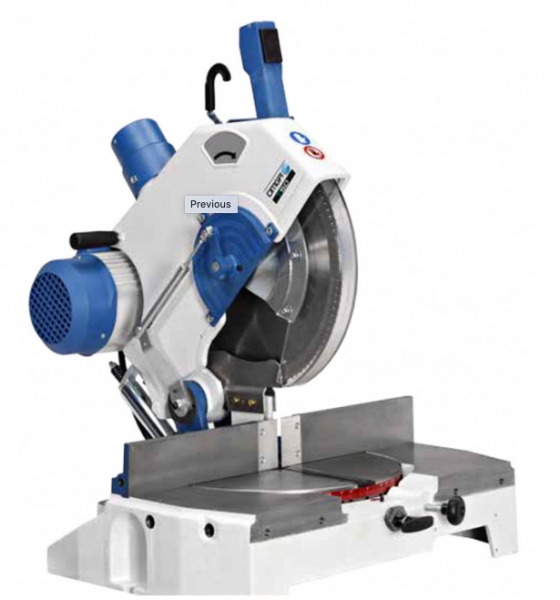

Omga Model T 50 350

• Omga Model T 50 350
• Data Sheet
• Cross Cut Capacity 90 deg.: 6 3/4"
• Cross Cut Capacity 45 deg.: 4 3/4"
• Max. Depth of Cut With Head at 90 deg.: 4 5/16"
• Motor Power: 3HP
• Saw Blade Bore: 1"
• Saw Blade Diameter: 14"
• Arbor Speed: 3400
• Dust Port: 3 1/8"
• General Information
• Solid cast iron base and head construction
• Rotating table rides on roller bearings for maximum smoothness and accuracy
• Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees
• Manual locking device for all the intermediate angles provides a great flexibility to this unit
• The belt driven transmission and a powerful 3 HP induction motor

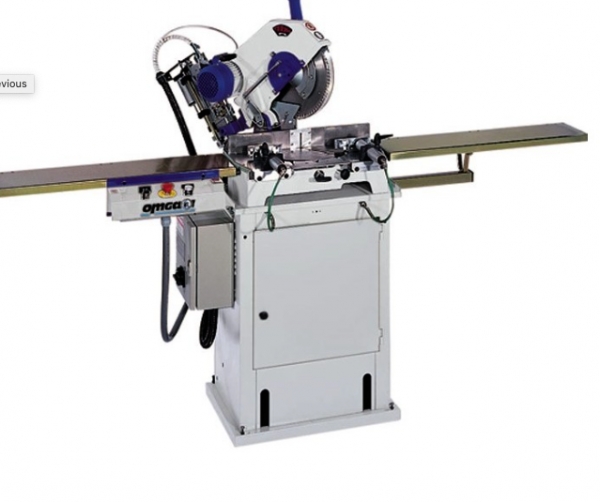

• Options:
• Cabinet for Mitre Chop Saws
• Dust Collecting Cabinet
• Table Extension with Scale 4'
• Support for scaled table extension
• Flip over stop Plexiglass at 45 degrees
• Automatic Descent of the Head (T 50 350)
• Pneumatic Horizontal Clamp RH (T 50-T 53)
• Pneumatic Horizontal Clamp LH (T 50-T 53)
• Pneumatic Hold-Down Clamp (T 50-T 53)
